LU‑SPL6 Automatic Heat Shrink Tunnel Shrinking Wrapping Machine

Enquire now Arrange a Demonstration Call Now

Machine overview

Key information to help you specify the right configuration.

LU-SPL6 Automatic Heat Shrink Tunnel Shrinking Wrapping Machine preview

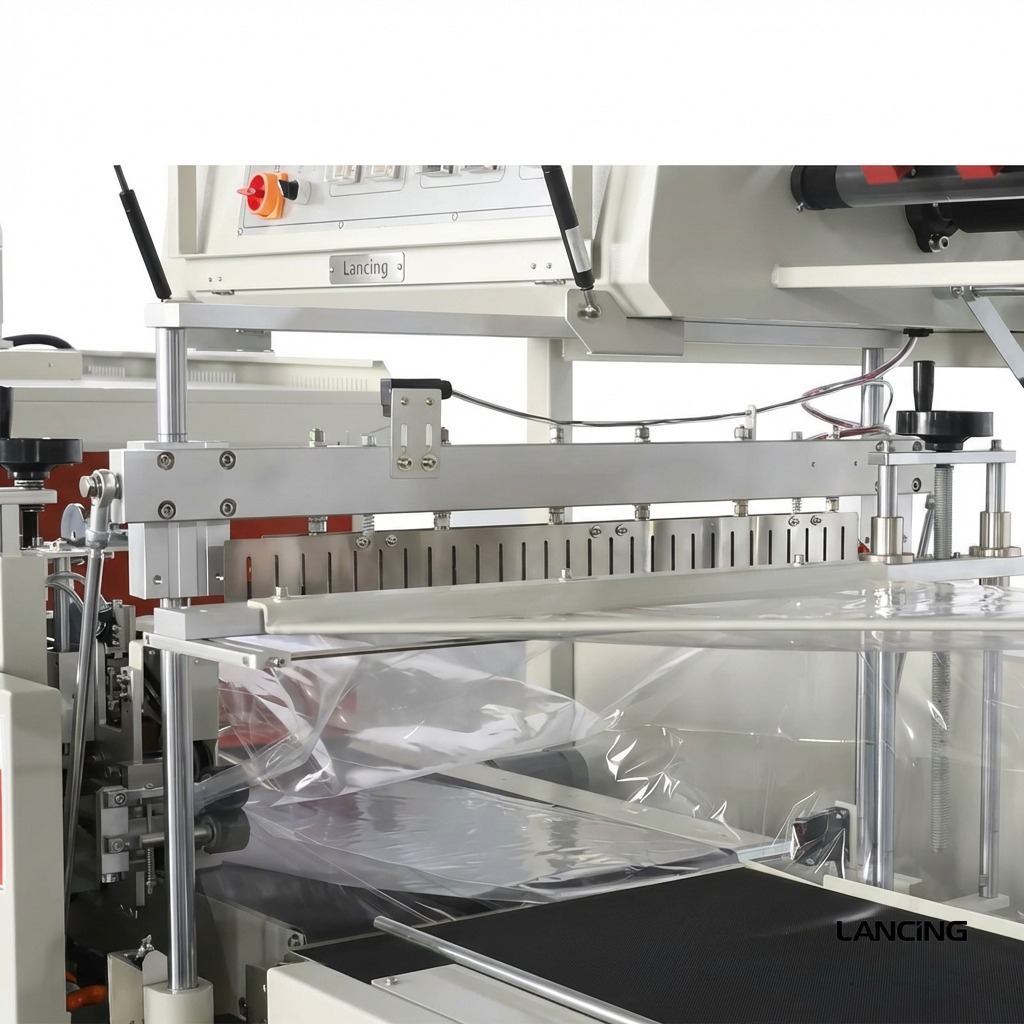

This automatic shrink wrap machine combines a side sealing system and heat shrink tunnel into one efficient unit. It automatically feeds POF, PE, or PVC shrink film, performs precise side sealing, and delivers a clean, tight package through the shrink tunnel.

Send your product details, container or pack format and target output to discuss configuration, pricing guidance and lead times.

This page lists output at 15-30 bag/min; format guidance including Applicable shrink film: POF/PE; site requirements including Power supply voltage: 220V 50-60Hz; Air pressure: 0.5Mpa. Lancing UK can review your product, container or pack format, target speed and site requirements to confirm the right configuration before quotation.

Throughput
15-30 bag/min
Actual throughput depends on the product, pack format, changeovers and the wider line setup.
Format range
POF/PE
Compatibility is checked against your real bottle, cap, label, pouch or carton dimensions.
Utilities
220V 50-60Hz; 0.5Mpa
Power, air and footprint requirements vary with the final machine configuration and options.

Specifications

Reference specification table. Final configuration is confirmed with the agreed scope, options and pack format.

ParameterValue
ParameterValue
ModelLU-BF750
Power supply voltage220V 50-60Hz
Air pressure0.5Mpa
Power2.26Kw
Packaging speed15-30 bag/min
Cutter Size870mm × 770
Maximum Package SizeW+H ≤ 700mm, L+H ≤ 800mm, H ≤ 150mm
Conveyor Belt Width600mm
Applicable shrink filmPOF/PE
Film shrinkage ratio60%
Table height780mm (adjustable)
Overall dimensions (L × W × H)2350 × 1350 × 1630mm
Machine weight440kg
Conveyor Loading Weight15-20kg
Voltage380V 50/60Hz
Carrying capacity40kg max
Furnace Road Size (mm)1800 × 750 × 400mm
Outline dimension (mm)2100 × 1010 × 1470mm
Transporting velocity0-15m/min

CAD / dimensions

Site requirements

  • Power supply voltage: 220V 50-60Hz
  • Air pressure: 0.5Mpa
  • Power: 2.26Kw
  • Machine size: 870mm × 770
For the most accurate proposal, include the product, container or pack dimensions, closure or label format, required units per hour and available utilities.

Detailed layout and dimension drawings can be supplied during quotation and project planning where required.

Quick answers

Practical information to help compare this machine with alternative packaging solutions.

What is LU‑SPL6 Automatic Heat Shrink Tunnel Shrinking Wrapping Machine used for?

This automatic shrink wrap machine combines a side sealing system and heat shrink tunnel into one efficient unit. It automatically feeds POF, PE, or PVC shrink film, performs precise side sealing, and delivers a clean, tight package through the shrink tunnel. This page lists output at 15-30 bag/min; format guidance including Applicable shrink film: POF/PE; site requirements including Power supply voltage: 220V 50-60Hz; Air pressure: 0.5Mpa.

What output can LU‑SPL6 Automatic Heat Shrink Tunnel Shrinking Wrapping Machine achieve?

This page lists output at 15-30 bag/min. Actual throughput depends on the product, container or pack format, changeover requirements and the wider line setup.

What formats does LU‑SPL6 Automatic Heat Shrink Tunnel Shrinking Wrapping Machine suit?

This page lists format guidance as Applicable shrink film: POF/PE. Final suitability is confirmed against your actual product and pack dimensions.

What utilities or site requirements should I plan for?

Typical requirements listed on this page include Power supply voltage: 220V 50-60Hz; Air pressure: 0.5Mpa; machine size: 870mm × 770.

Can Lancing UK help match this machine to my application?

Yes. Lancing UK can review the product, pack format, required output, utilities and line-integration needs to confirm the right configuration before quotation.
