Pro Range

LU‑SPL4 Automatic Bottle Wrapping & Shrinking System

Enquire now Arrange a Demonstration Call Now

Machine overview

Key information to help you specify the right configuration.

LU-SPL4 Automatic Bottle Wrapping & Shrinking System preview

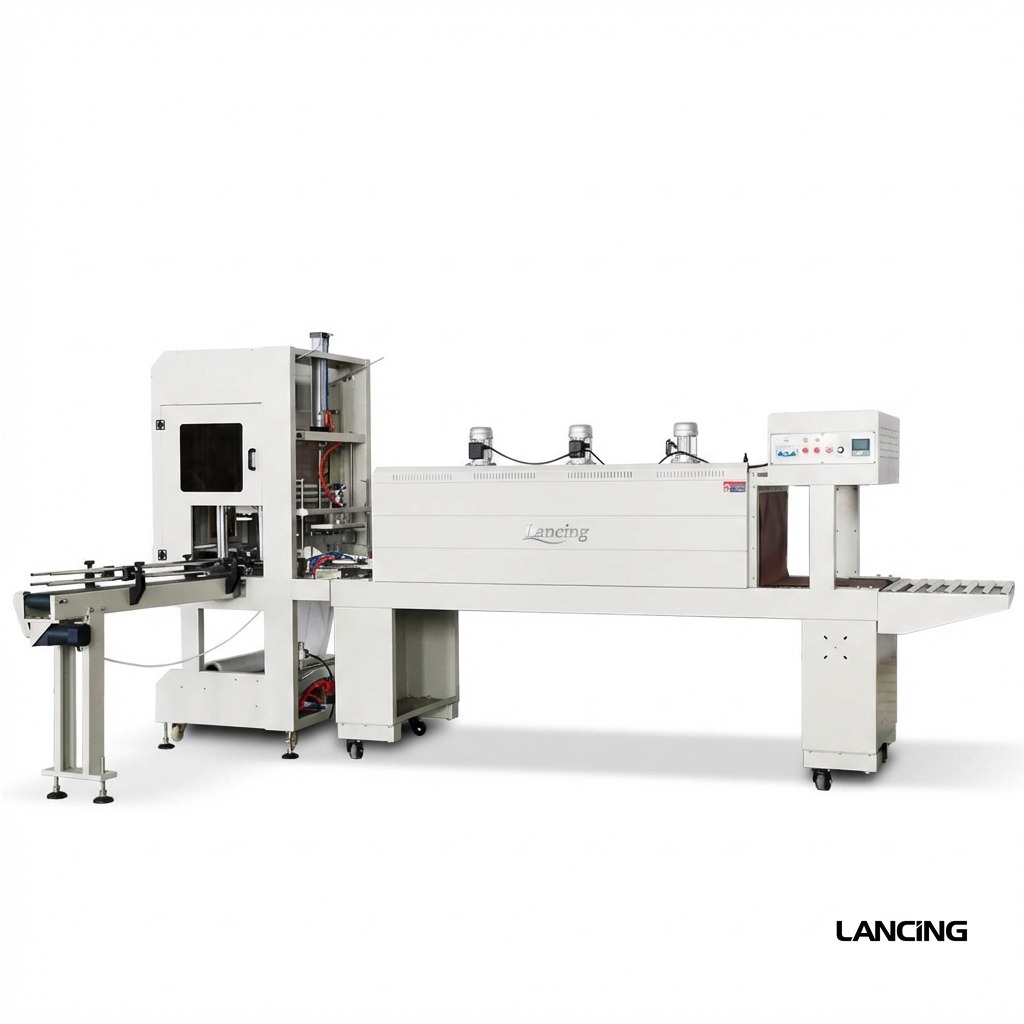

The Lancing UK LU-SPL4 Automatic Bottles Wrapping and Shrinking Packaging Machine is a complete solution for high-efficiency beverage packaging. Designed to wrap and seal shrink film around bottled water, soft drinks, or similar products, it integrates seamlessly with fillers, cap sealers, and label applicators to form a fully automated production line.

Send your product details, container or pack format and target output to discuss configuration, pricing guidance and lead times.

This page lists output at 0-6 packs per minute; format guidance including Applicable Film Type: PE shrink film only; Applicable Shrink Film: PVC / POF / PE; site requirements including Voltage: 220V, 50-60Hz; Power Consumption: 2 kW. Lancing UK can review your product, container or pack format, target speed and site requirements to confirm the right configuration before quotation.

Throughput
0-6 packs per minute
Actual throughput depends on the product, pack format, changeovers and the wider line setup.
Format range
PE shrink film only; PVC / POF / PE
Compatibility is checked against your real bottle, cap, label, pouch or carton dimensions.
Utilities
220V, 50-60Hz; 2 kW
Power, air and footprint requirements vary with the final machine configuration and options.

Specifications

Reference specification table. Final configuration is confirmed with the agreed scope, options and pack format.

ParameterValue
ParameterValue
Voltage220V, 50-60Hz
Power Consumption2 kW
Packing Speed0-6 packs per minute
Bottle Size Range Diameter60-120 mm
Height100-330 mm
Max Package Size400 × 120 × 330 mm
Min Package Size240 × 120 × 100 mm
Payload CapacityUp to 20 kg
Film Roll WidthMax 560 mm
Film Thickness0.03-0.25 mm
Applicable Film TypePE shrink film only
Machine Dimensions Approx.2150 × 1200 × 2020 mm
Machine Weight Approx.350 kg
ModelLU-BSPN6040

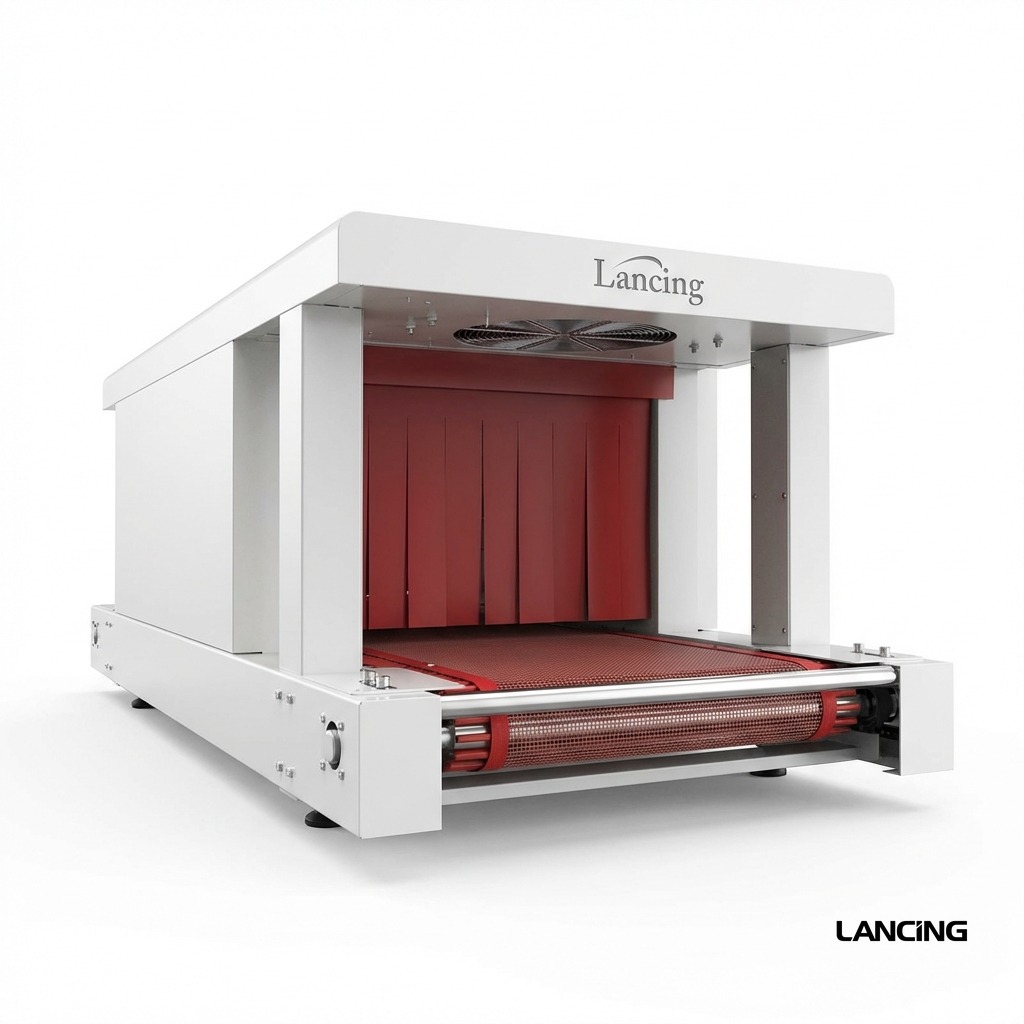

Tunnel DimensionsApprox. 1800 × 600 × 400 mm
Conveying Speed0-15 meters per minute
Applicable Shrink FilmPVC / POF / PE
Package DimensionsApprox. 2880 × 930 × 1500 mm
Package Weight Approx.350 kg

CAD / dimensions

Site requirements

  • Voltage: 220V, 50-60Hz
  • Power Consumption: 2 kW
  • Machine size: 60-120 mm
For the most accurate proposal, include the product, container or pack dimensions, closure or label format, required units per hour and available utilities.

Detailed layout and dimension drawings can be supplied during quotation and project planning where required.

Quick answers

Practical information to help compare this machine with alternative packaging solutions.

What is LU‑SPL4 Automatic Bottle Wrapping & Shrinking System used for?

The Lancing UK LU-SPL4 Automatic Bottles Wrapping and Shrinking Packaging Machine is a complete solution for high-efficiency beverage packaging. Designed to wrap and seal shrink film around bottled water, soft drinks, or similar products, it integrates seamlessly with fillers, cap sealers, and label applicators to form a fully automated production line. This page lists output at 0-6 packs per minute; format guidance including Applicable Film Type: PE shrink film only; Applicable Shrink Film: PVC / POF / PE; site requirements including Voltage: 220V, 50-60Hz; Power Consumption: 2 kW.

What output can LU‑SPL4 Automatic Bottle Wrapping & Shrinking System achieve?

This page lists output at 0-6 packs per minute. Actual throughput depends on the product, container or pack format, changeover requirements and the wider line setup.

What formats does LU‑SPL4 Automatic Bottle Wrapping & Shrinking System suit?

This page lists format guidance as Applicable Film Type: PE shrink film only; Applicable Shrink Film: PVC / POF / PE. Final suitability is confirmed against your actual product and pack dimensions.

What utilities or site requirements should I plan for?

Typical requirements listed on this page include Voltage: 220V, 50-60Hz; Power Consumption: 2 kW; machine size: 60-120 mm.

Can Lancing UK help match this machine to my application?

Yes. Lancing UK can review the product, pack format, required output, utilities and line-integration needs to confirm the right configuration before quotation.
