LU‑TB822S Barcode Overlay Labeling Machine

Enquire now Arrange a Demonstration Call Now

Machine overview

Key information to help you specify the right configuration.

Barcode Overlay Labeling Machine preview

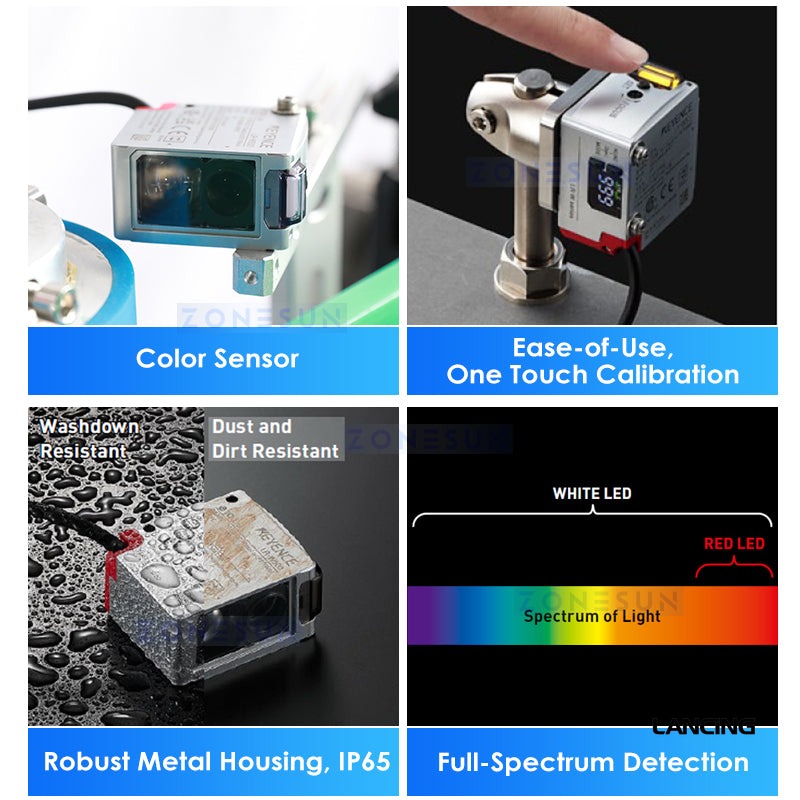

The Lancing UK LU-TB822S Positioning Round Labeling Machine is engineered for precision labeling on cylindrical containers, including over-labeling existing barcodes. Equipped with a full-spectrum color sensor, it detects subtle surface variations to ensure accurate label placement every time.

Send your product details, container or pack format and target output to discuss configuration, pricing guidance and lead times.

This page lists output at 15-20 pcs/min; format guidance including Suitable label size: Customizable; site requirements including Voltage: 110V/220V, 50/60Hz; Air pressure: 0.4-0.6MPa. Lancing UK can review your product, container or pack format, target speed and site requirements to confirm the right configuration before quotation.

Throughput
15-20 pcs/min
Actual throughput depends on the product, pack format, changeovers and the wider line setup.
Format range
Customizable
Compatibility is checked against your real bottle, cap, label, pouch or carton dimensions.
Utilities
110V/220V, 50/60Hz; 0.4-0.6MPa
Power, air and footprint requirements vary with the final machine configuration and options.

Specifications

Reference specification table. Final configuration is confirmed with the agreed scope, options and pack format.

ParameterValue
ParameterValue
ModelLU-TB822S
Voltage110V/220V, 50/60Hz
Diameter15-110mm
Height100-300mm
Suitable label sizeCustomizable
Core diameter76mm
Outer diameter300mm
Labeling speed15-20 pcs/min
Accuracy±2mm
Air pressure0.4-0.6MPa
Machine size (L×W×H)2131×1406×1046mm
Package size210×145×163cm
Package weight378kg

CAD / dimensions

Site requirements

  • Voltage: 110V/220V, 50/60Hz
  • Air pressure: 0.4-0.6MPa
  • Machine size: Customizable
For the most accurate proposal, include the product, container or pack dimensions, closure or label format, required units per hour and available utilities.

Detailed layout and dimension drawings can be supplied during quotation and project planning where required.

Quick answers

Practical information to help compare this machine with alternative packaging solutions.

What is LU‑TB822S Barcode Overlay Labeling Machine used for?

The Lancing UK LU-TB822S Positioning Round Labeling Machine is engineered for precision labeling on cylindrical containers, including over-labeling existing barcodes. Equipped with a full-spectrum color sensor, it detects subtle surface variations to ensure accurate label placement every time. This page lists output at 15-20 pcs/min; format guidance including Suitable label size: Customizable; site requirements including Voltage: 110V/220V, 50/60Hz; Air pressure: 0.4-0.6MPa.

What output can LU‑TB822S Barcode Overlay Labeling Machine achieve?

This page lists output at 15-20 pcs/min. Actual throughput depends on the product, container or pack format, changeover requirements and the wider line setup.

What formats does LU‑TB822S Barcode Overlay Labeling Machine suit?

This page lists format guidance as Suitable label size: Customizable. Final suitability is confirmed against your actual product and pack dimensions.

What utilities or site requirements should I plan for?

Typical requirements listed on this page include Voltage: 110V/220V, 50/60Hz; Air pressure: 0.4-0.6MPa; machine size: Customizable.

Can Lancing UK help match this machine to my application?

Yes. Lancing UK can review the product, pack format, required output, utilities and line-integration needs to confirm the right configuration before quotation.
