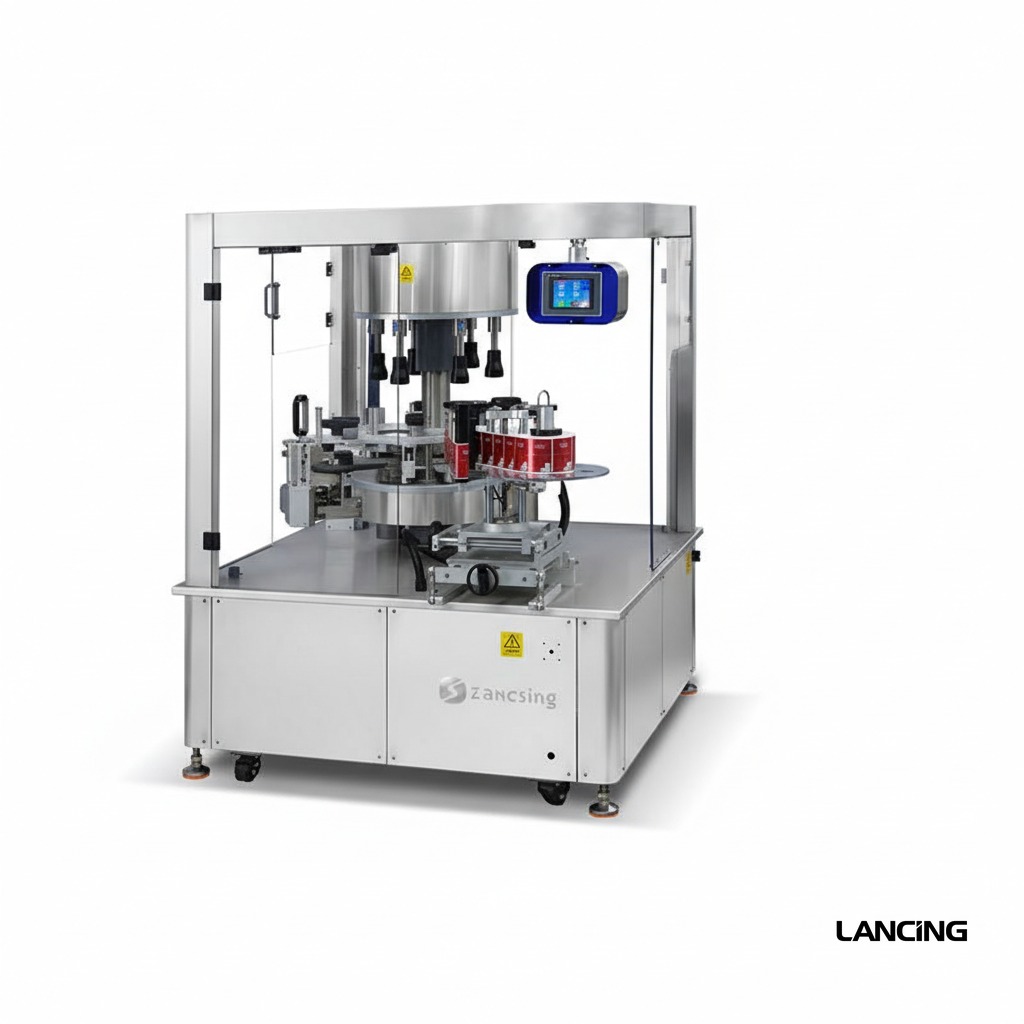

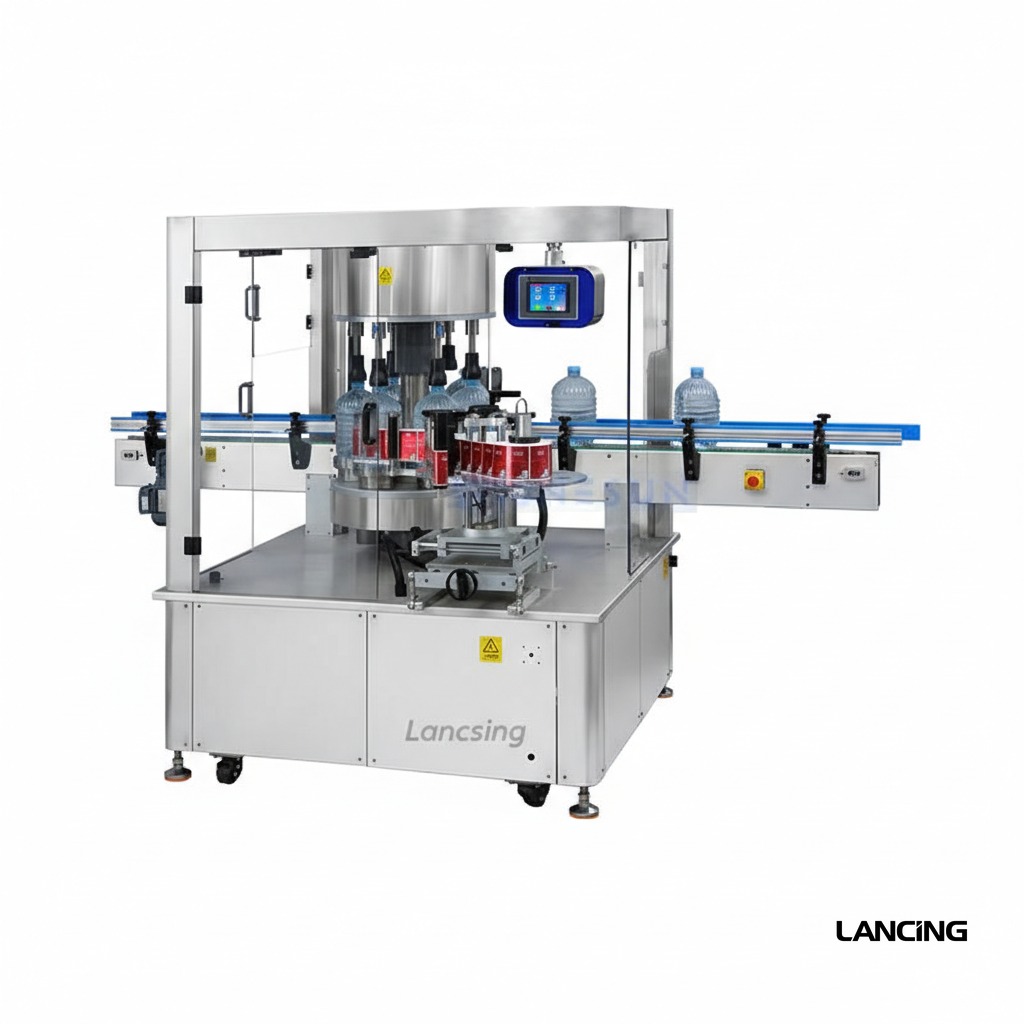

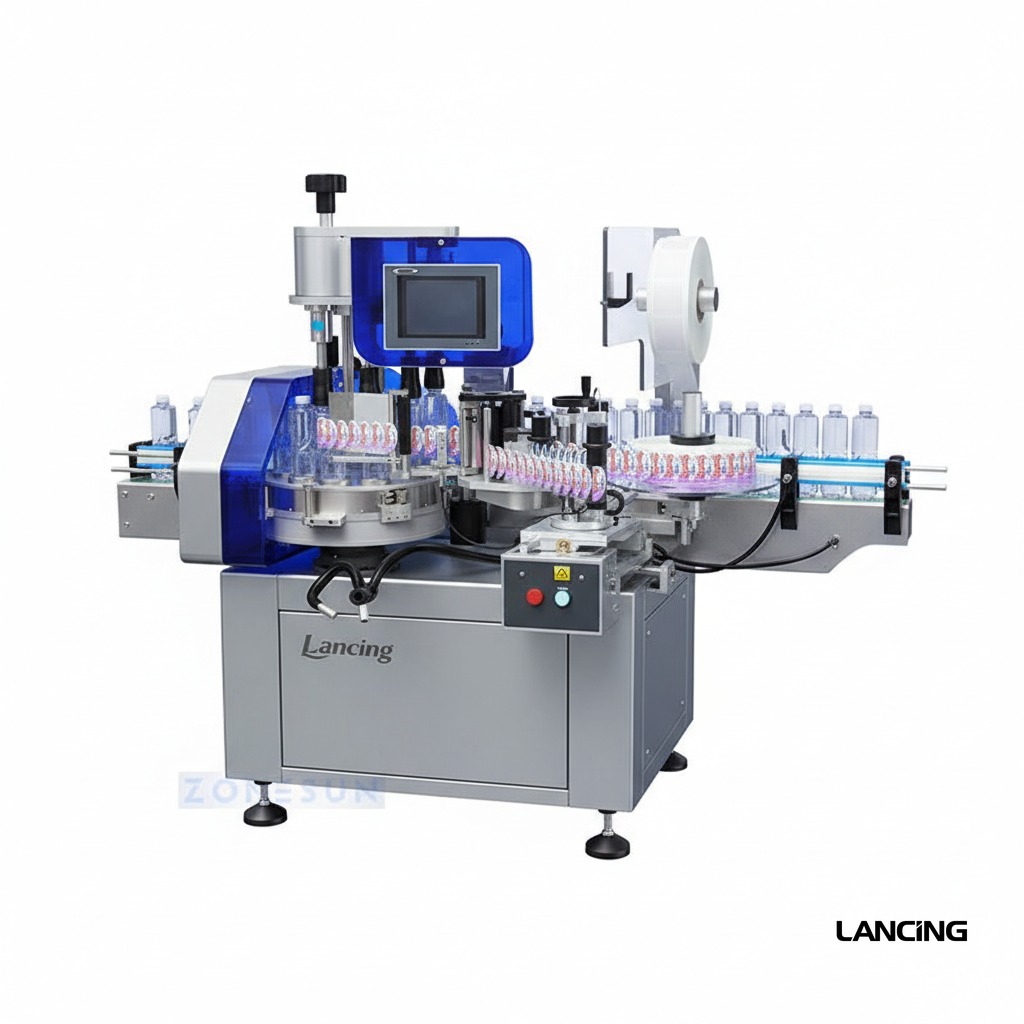

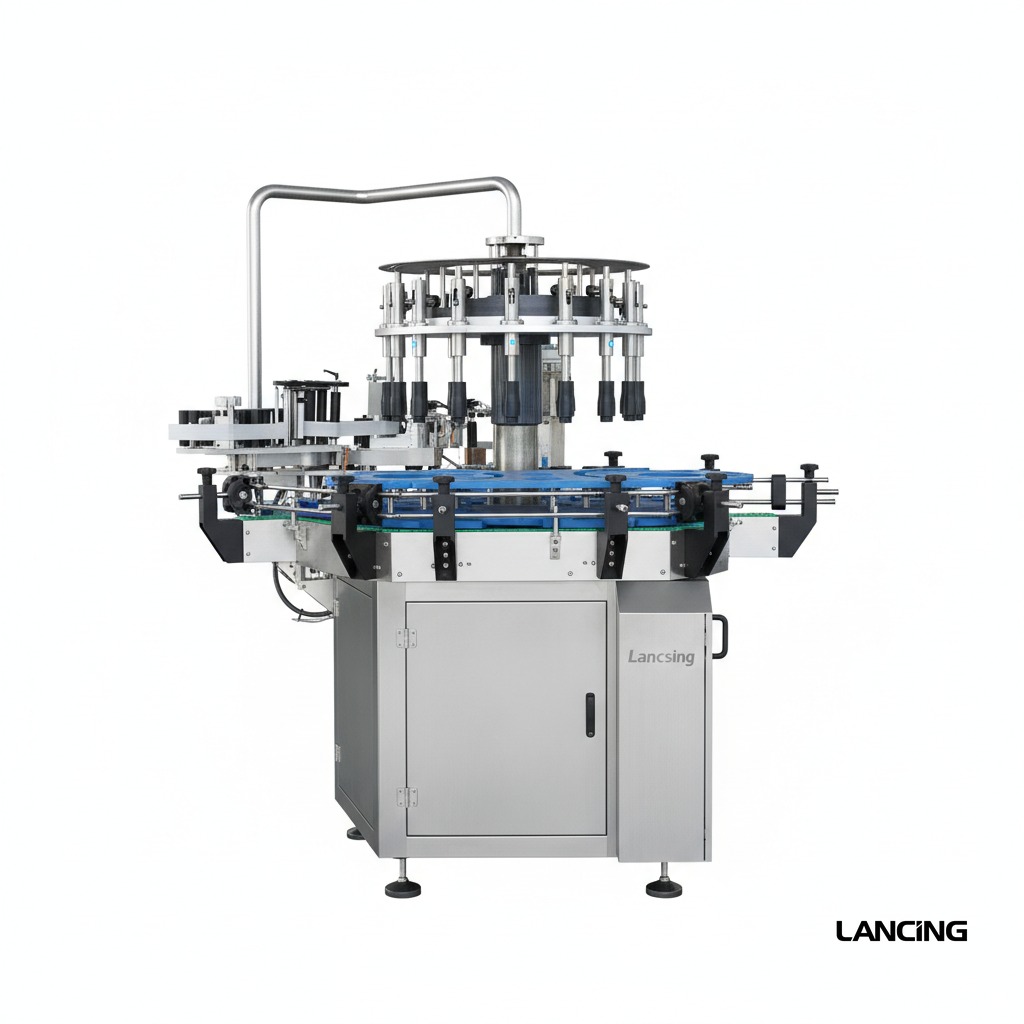

Machine gallery
Representative machine images.
Specifications
Reference specification table. Final configuration is confirmed with the agreed scope, options and pack format.
| Parameter | Value |
|---|
| Parameter | Value |
|---|
| Model | LU-CYGDP6 |
|---|
| Power Supply | 3-phase 380V, 50Hz, 12kW |
|---|
| Air Supply | ≥ 0.6 kg/cm² |
|---|
| Working Speed | 15,000-18,000 bottles/hour |
|---|
| Conveyor Speed | 0-30min, can be adjusted freely |
|---|
| Labeling Accuracy | ±1mm |
|---|
| Required Size of Labels | Max Width: 200mm / Max Length: 280mm |
|---|
| Required Size of Label Rolls | Inner Diameter: 76mm / Outer Diameter: < 400mm |
|---|
| Applicable Bottles | Max Diameter: 130mm / Height: 120-400mm |
|---|
| Gluing Temperature | 120-160°C |
|---|
| Machine Size | (L)3300mm × (W)1400mm × (H)2140mm |
|---|
| Machine Weight | Approx. 2,500KG |
|---|
CAD / dimensions
Site requirements
- Power Supply: 3-phase 380V, 50Hz, 12kW
- Machine size: Max Width: 200mm / Max Length: 280mm
For the most accurate proposal, include the product, container or pack dimensions, closure or label format, required units per hour and available utilities.
Detailed layout and dimension drawings can be supplied during quotation and project planning where required.
Quick answers
Practical information to help compare this machine with alternative packaging solutions.
What is LU‑CYGDP6 Automatic Round Bottle Label Applicator used for?
This automatic labeling machine is a type of industrial machinery used to apply self-adhesive labels to a variety of cylindrical containers such as plastic bottles, glass bottles, and metal cans. This series of labeling machines is versatile and can be used for both single side and double side labeling of self-adhesive material labels. This page lists output at 15,000-18,000 bottles/hour; format guidance including Applicable Bottles: Max Diameter: 130mm / Height: 120-400mm; site requirements including Power Supply: 3-phase 380V, 50Hz, 12kW.
What output can LU‑CYGDP6 Automatic Round Bottle Label Applicator achieve?
This page lists output at 15,000-18,000 bottles/hour. Actual throughput depends on the product, container or pack format, changeover requirements and the wider line setup.
What formats does LU‑CYGDP6 Automatic Round Bottle Label Applicator suit?
This page lists format guidance as Applicable Bottles: Max Diameter: 130mm / Height: 120-400mm. Final suitability is confirmed against your actual product and pack dimensions.
What utilities or site requirements should I plan for?
Typical requirements listed on this page include Power Supply: 3-phase 380V, 50Hz, 12kW; machine size: Max Width: 200mm / Max Length: 280mm.
Can Lancing UK help match this machine to my application?
Yes. Lancing UK can review the product, pack format, required output, utilities and line-integration needs to confirm the right configuration before quotation.
