LU‑DTZL500 Perfume & Essential Oil Liquid Filling Machine

Enquire now Arrange a Demonstration Call Now

Machine overview

Key information to help you specify the right configuration.

Perfume & Essential Oil Liquid Filling Machine preview

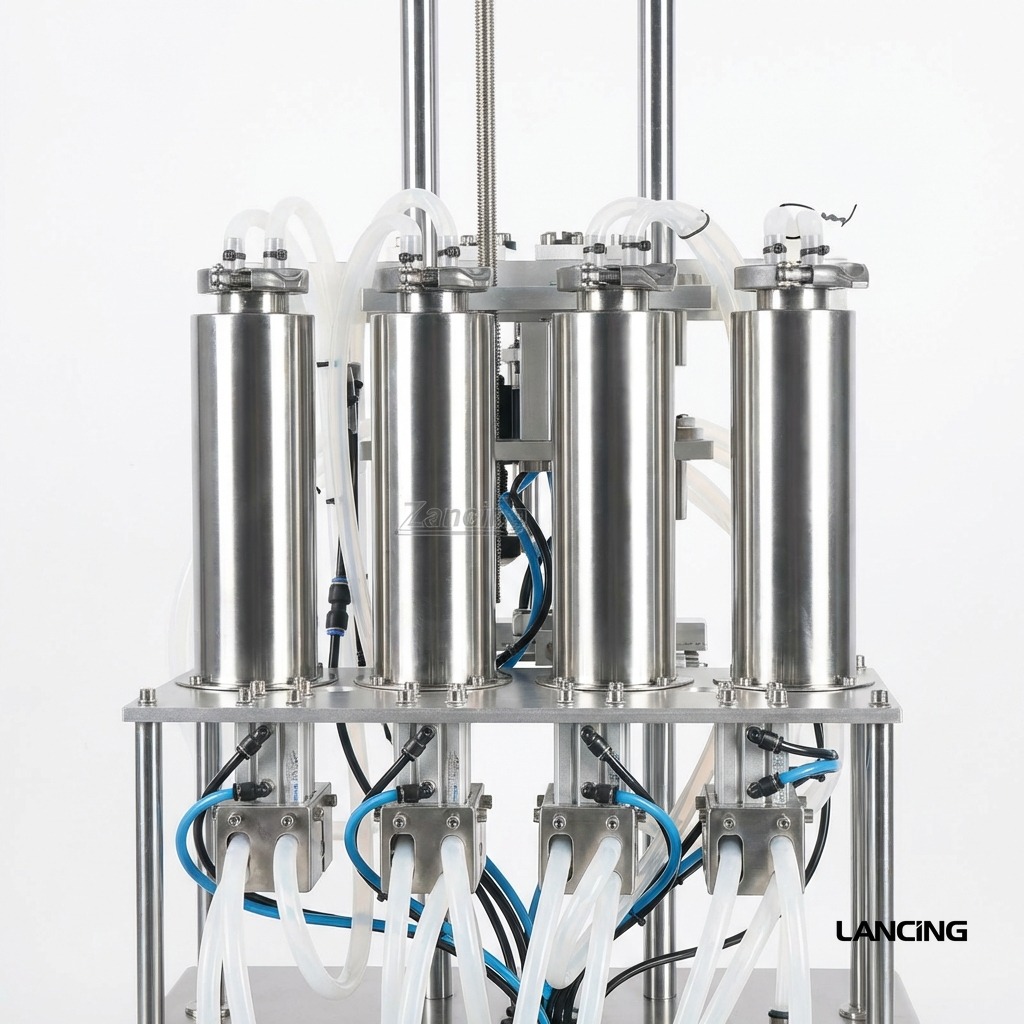

The Lancing UK LU-DTZL500 Liquid Surface Position Filling Machine is designed for precise filling of low-viscosity liquids such as perfume, eye drops, and essential oils. Equipped with four nozzles and adjustable liquid surface control, it ensures consistent fill levels across a wide range of bottle sizes.

Send your product details, container or pack format and target output to discuss configuration, pricing guidance and lead times.

This page lists output at 20-40 bottles/min (4 nozzles, depends on bottle & liquid); format guidance including Filling Range Approx.: 5-500ml; Applicable Bottle Height: <200mm; site requirements including Power: Approx. 80W; Air Pressure Requirement: 0.4-0.8MPa. Lancing UK can review your product, container or pack format, target speed and site requirements to confirm the right configuration before quotation.

Throughput
20-40 bottles/min (4 nozzles, depends on bottle & liquid)
Actual throughput depends on the product, pack format, changeovers and the wider line setup.
Format range
5-500ml; <200mm
Compatibility is checked against your real bottle, cap, label, pouch or carton dimensions.
Utilities
Approx. 80W; 0.4-0.8MPa
Power, air and footprint requirements vary with the final machine configuration and options.

Specifications

Reference specification table. Final configuration is confirmed with the agreed scope, options and pack format.

ParameterValue
ParameterValue
Machine ModelLU-DTZL500
PowerApprox. 80W
Filling Range Approx.5-500ml
Filling Speed20-40 bottles/min (4 nozzles, depends on bottle & liquid)
Air Pressure Requirement0.4-0.8MPa
Applicable Bottle Height<200mm
Filling Nozzle Diameter7mm
Bottle Mouth Diameter<22mm
Minimum Applicable Bottle Diameter35 mm
Adjustable Liquid Surface Distance5-20mm
Suitable Bottle Diameter<100mm
Machine Dimensions (L × W × H) Approx.1170 × 690 × 1180mm
Machine Weight Approx.71kg
Package Dimensions (L × W × H) Approx.1100 × 580 × 1090mm
Package Weight Approx.107kg

CAD / dimensions

Site requirements

  • Power: Approx. 80W
  • Air Pressure Requirement: 0.4-0.8MPa
  • Machine size: 1170 × 690 × 1180mm
For the most accurate proposal, include the product, container or pack dimensions, closure or label format, required units per hour and available utilities.

Detailed layout and dimension drawings can be supplied during quotation and project planning where required.

Quick answers

Practical information to help compare this machine with alternative packaging solutions.

What is LU‑DTZL500 Perfume & Essential Oil Liquid Filling Machine used for?

The Lancing UK LU-DTZL500 Liquid Surface Position Filling Machine is designed for precise filling of low-viscosity liquids such as perfume, eye drops, and essential oils. Equipped with four nozzles and adjustable liquid surface control, it ensures consistent fill levels across a wide range of bottle sizes. This page lists output at 20-40 bottles/min (4 nozzles, depends on bottle & liquid); format guidance including Filling Range Approx.: 5-500ml; Applicable Bottle Height: <200mm; site requirements including Power: Approx. 80W; Air Pressure Requirement: 0.4-0.8MPa.

What output can LU‑DTZL500 Perfume & Essential Oil Liquid Filling Machine achieve?

This page lists output at 20-40 bottles/min (4 nozzles, depends on bottle & liquid). Actual throughput depends on the product, container or pack format, changeover requirements and the wider line setup.

What formats does LU‑DTZL500 Perfume & Essential Oil Liquid Filling Machine suit?

This page lists format guidance as Filling Range Approx.: 5-500ml; Applicable Bottle Height: <200mm. Final suitability is confirmed against your actual product and pack dimensions.

What utilities or site requirements should I plan for?

Typical requirements listed on this page include Power: Approx. 80W; Air Pressure Requirement: 0.4-0.8MPa; machine size: 1170 × 690 × 1180mm.

Can Lancing UK help match this machine to my application?

Yes. Lancing UK can review the product, pack format, required output, utilities and line-integration needs to confirm the right configuration before quotation.
