LU‑TB822X Automatic Square Bottle Body & Caps Labeling Machine

Enquire now Arrange a Demonstration Call Now

Machine overview

Key information to help you specify the right configuration.

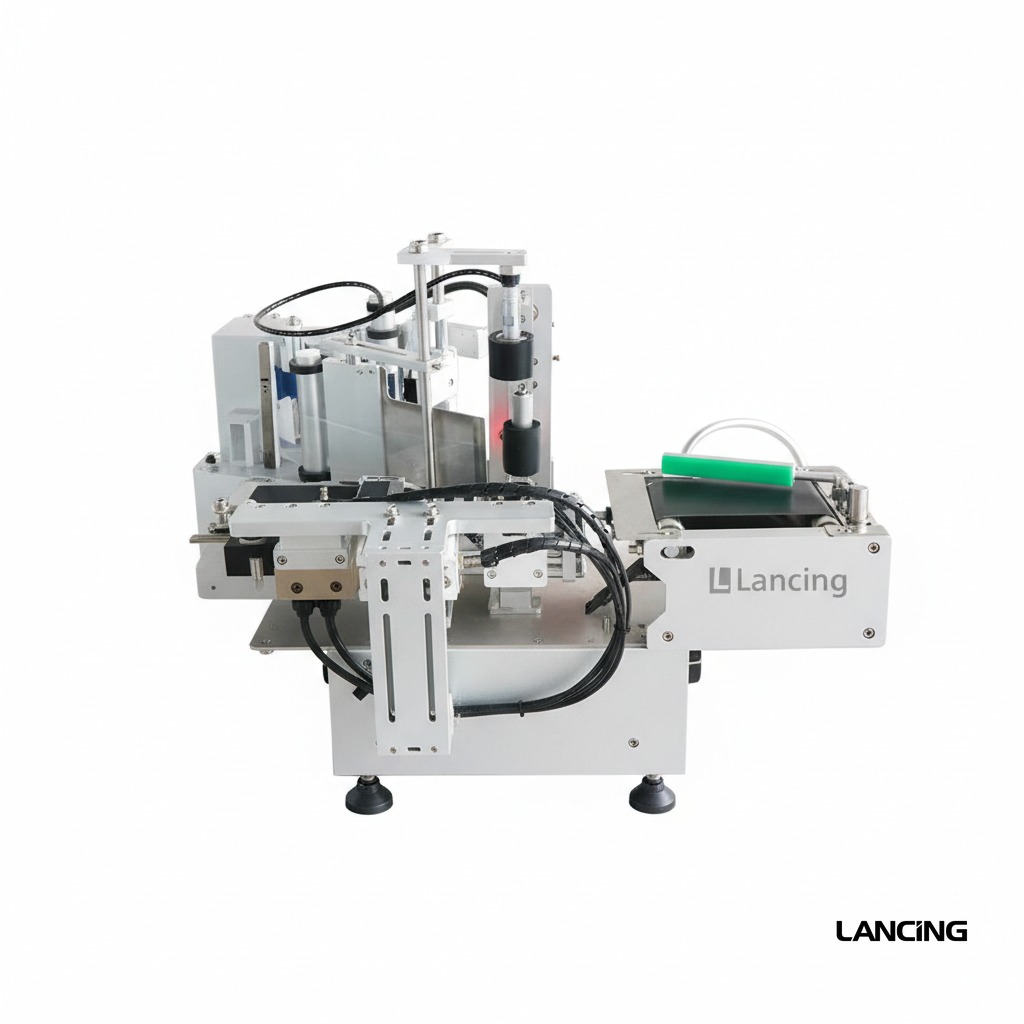

Automatic Square Bottle Body & Caps Labeling Machine preview

The machine is designed for precise top and multi-sided labeling. It supports single-sided, double-sided, three-sided and wrap-around labeling to meet a variety of packaging needs.

Send your product details, container or pack format and target output to discuss configuration, pricing guidance and lead times.

This page lists output at 25-45 PCS/MIN. (Stepper Motor Edition), 30-60 PCS/MIN. (Servo Motor Edition); format guidance including Applicable Label Size: Customized According to Product; Applicable Product Size: Customized According to Product; site requirements including Voltage: 220V 50Hz 570W; Air Pressure (Mpa): 0.4-0.6 Mpa. Lancing UK can review your product, container or pack format, target speed and site requirements to confirm the right configuration before quotation.

Throughput
25-45 PCS/MIN. (Stepper Motor Edition), 30-60 PCS/MIN. (Servo Motor Edition)
Actual throughput depends on the product, pack format, changeovers and the wider line setup.
Format range
Customized According to Product; Customized According to Product
Compatibility is checked against your real bottle, cap, label, pouch or carton dimensions.
Utilities
220V 50Hz 570W; 0.4-0.6 Mpa
Power, air and footprint requirements vary with the final machine configuration and options.

Specifications

Reference specification table. Final configuration is confirmed with the agreed scope, options and pack format.

ParameterValue
ParameterValue
Machine ModelLU-TB822X
Voltage220V 50Hz 570W
Applicable Label SizeCustomized According to Product
Applicable Product SizeCustomized According to Product
Max. Label Roll Outer Diameterφ280 mm
Label Roll Inner Diameterφ76 mm
Labeling Accuracy±1 mm
Labeling Speed25-45 PCS/MIN. (Stepper Motor Edition), 30-60 PCS/MIN. (Servo Motor Edition)
Conveyor Speed (m/min)5-18 m/Min.
Air Pressure (Mpa)0.4-0.6 Mpa
Machine DimensionsApprox. 3100×1280×1680 mm
Machine WeightApprox. 200 KG

CAD / dimensions

Site requirements

  • Voltage: 220V 50Hz 570W
  • Air Pressure (Mpa): 0.4-0.6 Mpa
  • Machine size: Customized According to Product
For the most accurate proposal, include the product, container or pack dimensions, closure or label format, required units per hour and available utilities.

Detailed layout and dimension drawings can be supplied during quotation and project planning where required.

Quick answers

Practical information to help compare this machine with alternative packaging solutions.

What is LU‑TB822X Automatic Square Bottle Body & Caps Labeling Machine used for?

The machine is designed for precise top and multi-sided labeling. It supports single-sided, double-sided, three-sided and wrap-around labeling to meet a variety of packaging needs. This page lists output at 25-45 PCS/MIN. (Stepper Motor Edition), 30-60 PCS/MIN. (Servo Motor Edition); format guidance including Applicable Label Size: Customized According to Product; Applicable Product Size: Customized According to Product; site requirements including Voltage: 220V 50Hz 570W; Air Pressure (Mpa): 0.4-0.6 Mpa.

What output can LU‑TB822X Automatic Square Bottle Body & Caps Labeling Machine achieve?

This page lists output at 25-45 PCS/MIN. (Stepper Motor Edition), 30-60 PCS/MIN. (Servo Motor Edition). Actual throughput depends on the product, container or pack format, changeover requirements and the wider line setup.

What formats does LU‑TB822X Automatic Square Bottle Body & Caps Labeling Machine suit?

This page lists format guidance as Applicable Label Size: Customized According to Product; Applicable Product Size: Customized According to Product. Final suitability is confirmed against your actual product and pack dimensions.

What utilities or site requirements should I plan for?

Typical requirements listed on this page include Voltage: 220V 50Hz 570W; Air Pressure (Mpa): 0.4-0.6 Mpa; machine size: Customized According to Product.

Can Lancing UK help match this machine to my application?

Yes. Lancing UK can review the product, pack format, required output, utilities and line-integration needs to confirm the right configuration before quotation.
