LU‑XG16D3 Automatic T-Cork Press Capping Machine

Enquire now Arrange a Demonstration Call Now

Machine overview

Key information to help you specify the right configuration.

LU-XG16D3 Automatic T-Cork Press Capping Machine preview

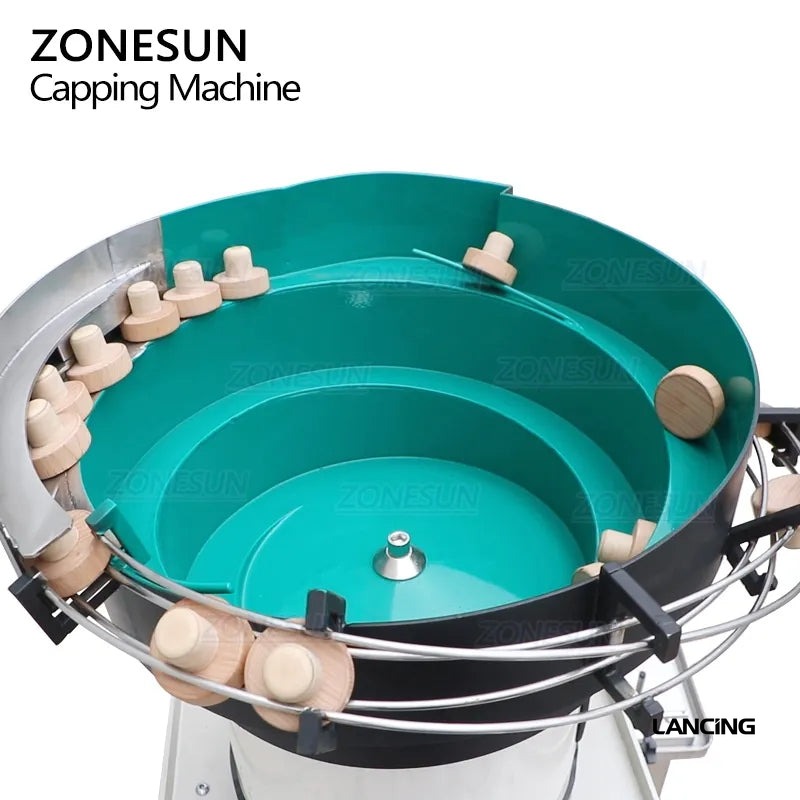

This bottle cap pressing machine is equipped with vibrating bowl sorter, which can make bottle caps be in order before capping work.It is suitable for the press type bottle caps like liquor bottle with T-cork, the inner plug.It is widely used in brewing, cosmetics or daily chemical industries. This page lists output at 20-30 bottles/minute(depending on bottle and caps); format guidance including Bottle Height: 30-300mm; Bottle Diameter: 30-100mm; site requirements including Working Voltage: AC220V/110V 50-60HZ; Working Pressure: 0.4-0.6 MPa.

Send your product details, container or pack format and target output to discuss configuration, pricing guidance and lead times.

Lancing UK can review your product, container or pack format, target speed and site requirements to confirm the right configuration before quotation.

Throughput
20-30 bottles/minute(depending on bottle and caps)
Actual throughput depends on the product, pack format, changeovers and the wider line setup.
Format range
30-300mm; 30-100mm
Compatibility is checked against your real bottle, cap, label, pouch or carton dimensions.
Utilities
AC220V/110V 50-60HZ; 0.4-0.6 MPa
Power, air and footprint requirements vary with the final machine configuration and options.

Specifications

Reference specification table. Final configuration is confirmed with the agreed scope, options and pack format.

ParameterValue
ParameterValue
Machine ModelLU-XG16D3
Working VoltageAC220V/110V 50-60HZ
Bottle Height30-300mm
Bottle Caps Diameter18-70mm
Bottle Diameter30-100mm
Working Speed20-30 bottles/minute(depending on bottle and caps)
Working Pressure0.4-0.6 MPa
Size Of Air Compressor ConnectorOD 8mm
Conveyor Length115mm(W)1020mm(L)
Machine SizeAbout 21909501860mm

CAD / dimensions

Site requirements

  • Working Voltage: AC220V/110V 50-60HZ
  • Working Pressure: 0.4-0.6 MPa
  • Machine size: OD 8mm
For the most accurate proposal, include the product, container or pack dimensions, closure or label format, required units per hour and available utilities.

Detailed layout and dimension drawings can be supplied during quotation and project planning where required.

Quick answers

Practical information to help compare this machine with alternative packaging solutions.

What is LU‑XG16D3 Automatic T-Cork Press Capping Machine used for?

This bottle cap pressing machine is equipped with vibrating bowl sorter, which can make bottle caps be in order before capping work.It is suitable for the press type bottle caps like liquor bottle with T-cork, the inner plug.It is widely used in brewing, cosmetics or daily chemical industries. This page lists output at 20-30 bottles/minute(depending on bottle and caps); format guidance including Bottle Height: 30-300mm; Bottle Diameter: 30-100mm; site requirements including Working Voltage: AC220V/110V 50-60HZ; Working Pressure: 0.4-0.6 MPa.

What output can LU‑XG16D3 Automatic T-Cork Press Capping Machine achieve?

This page lists output at 20-30 bottles/minute(depending on bottle and caps). Actual throughput depends on the product, container or pack format, changeover requirements and the wider line setup.

What formats does LU‑XG16D3 Automatic T-Cork Press Capping Machine suit?

This page lists format guidance as Bottle Height: 30-300mm; Bottle Diameter: 30-100mm. Final suitability is confirmed against your actual product and pack dimensions.

What utilities or site requirements should I plan for?

Typical requirements listed on this page include Working Voltage: AC220V/110V 50-60HZ; Working Pressure: 0.4-0.6 MPa; machine size: OD 8mm.

Can Lancing UK help match this machine to my application?

Yes. Lancing UK can review the product, pack format, required output, utilities and line-integration needs to confirm the right configuration before quotation.
