Pro Range

LU‑XG1870D Pneumatic Automatic Bottle Cap Pressing Machine

Enquire now Arrange a Demonstration Call Now

Machine overview

Key information to help you specify the right configuration.

Pneumatic Automatic Bottle Cap Pressing Machine preview

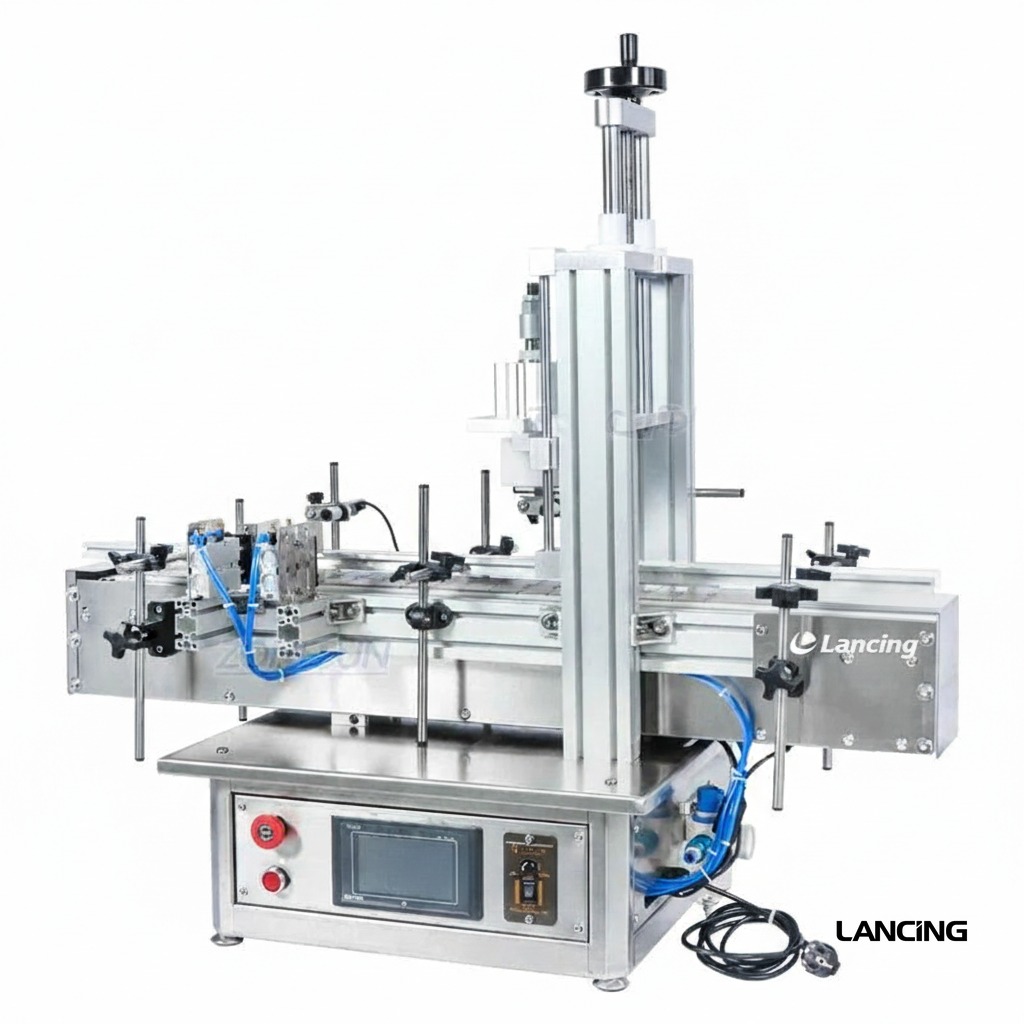

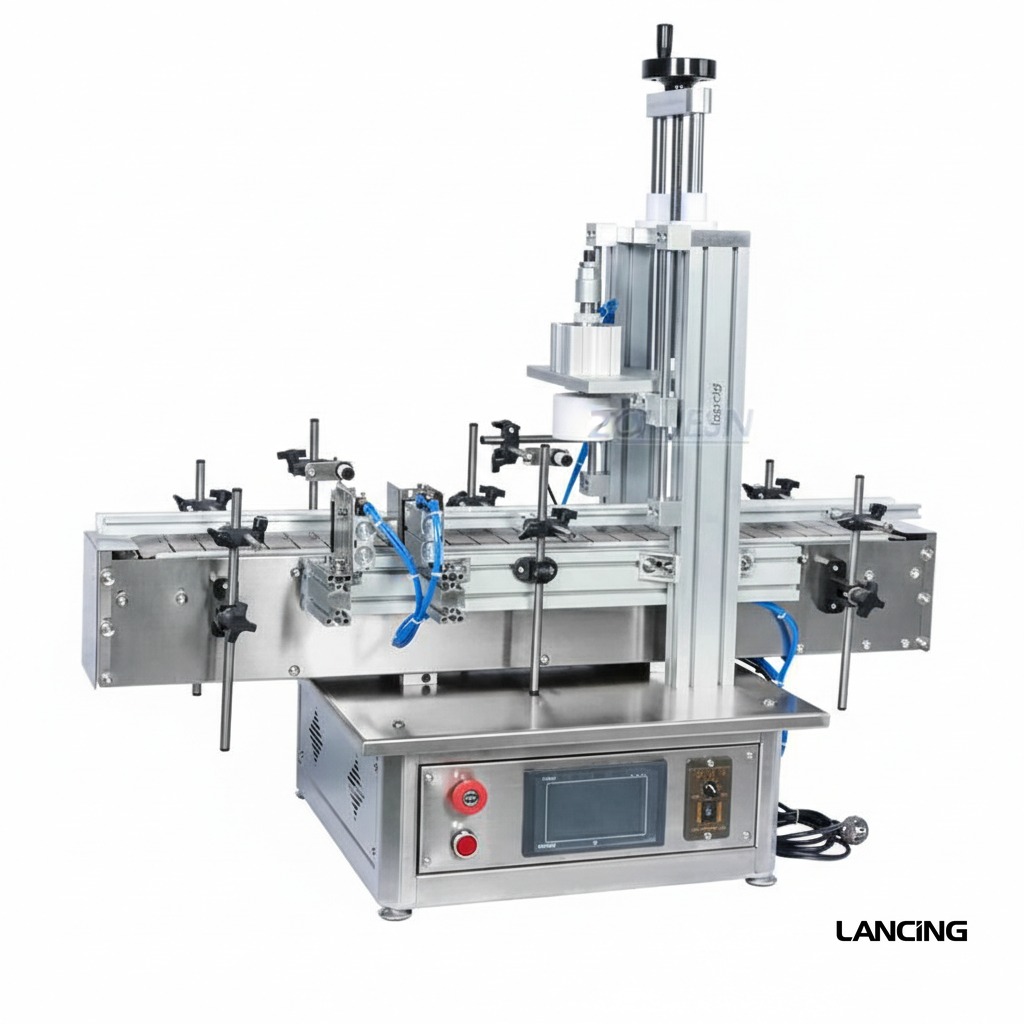

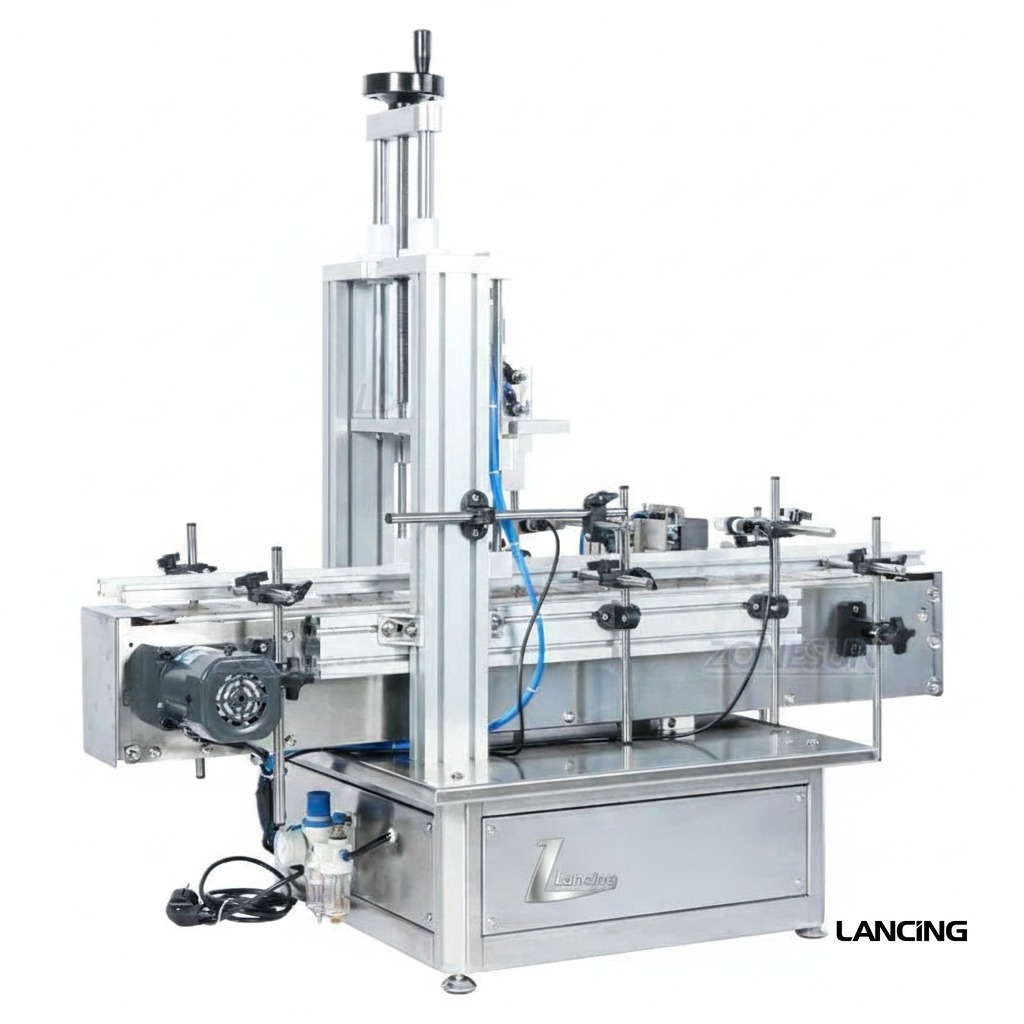

The Lancing UK LU-XG1870D is a tabletop pneumatic capping machine designed for pressing caps onto bottles of various sizes. With customizable capping chucks (≤130mm cap diameter) and adjustable bottle height (60-270mm), it offers flexibility for small-scale production in food, cosmetics, wine, and pharmaceutical industries.

Send your product details, container or pack format and target output to discuss configuration, pricing guidance and lead times.

This page lists output at 20-40 bottles/minute(depending on botle and caps); format guidance including Bottle height: 60-270mm; site requirements including Working voltage: AC220V/110V 50-60HZ; Working pressure: 0.4-0.6 MPa. Lancing UK can review your product, container or pack format, target speed and site requirements to confirm the right configuration before quotation.

Throughput
20-40 bottles/minute(depending on botle and caps)
Actual throughput depends on the product, pack format, changeovers and the wider line setup.
Format range
60-270mm
Compatibility is checked against your real bottle, cap, label, pouch or carton dimensions.
Utilities
AC220V/110V 50-60HZ; 0.4-0.6 MPa
Power, air and footprint requirements vary with the final machine configuration and options.

Specifications

Reference specification table. Final configuration is confirmed with the agreed scope, options and pack format.

ParameterValue
ParameterValue
Machine ModelLU-XG1870D
Working voltageAC220V/110V 50-60HZ
Bottle height60-270mm
Bottle caps diametercustomize(≤130mm)
Working speed20-40 bottles/minute(depending on botle and caps)
Working pressure0.4-0.6 MPa
Size of Air Compressor ConnectorOD 8mm
Machine size1020*580*1220mm
Machine weight:52kg
Package size1130*600*1120mm
Package weightAbout 83.5kg
Conveyor length115mm(W)* 1020mm(L)

CAD / dimensions

Site requirements

  • Working voltage: AC220V/110V 50-60HZ
  • Working pressure: 0.4-0.6 MPa
  • Machine size: OD 8mm
For the most accurate proposal, include the product, container or pack dimensions, closure or label format, required units per hour and available utilities.

Detailed layout and dimension drawings can be supplied during quotation and project planning where required.

Quick answers

Practical information to help compare this machine with alternative packaging solutions.

What is LU‑XG1870D Pneumatic Automatic Bottle Cap Pressing Machine used for?

The Lancing UK LU-XG1870D is a tabletop pneumatic capping machine designed for pressing caps onto bottles of various sizes. With customizable capping chucks (≤130mm cap diameter) and adjustable bottle height (60-270mm), it offers flexibility for small-scale production in food, cosmetics, wine, and pharmaceutical industries. This page lists output at 20-40 bottles/minute(depending on botle and caps); format guidance including Bottle height: 60-270mm; site requirements including Working voltage: AC220V/110V 50-60HZ; Working pressure: 0.4-0.6 MPa.

What output can LU‑XG1870D Pneumatic Automatic Bottle Cap Pressing Machine achieve?

This page lists output at 20-40 bottles/minute(depending on botle and caps). Actual throughput depends on the product, container or pack format, changeover requirements and the wider line setup.

What formats does LU‑XG1870D Pneumatic Automatic Bottle Cap Pressing Machine suit?

This page lists format guidance as Bottle height: 60-270mm. Final suitability is confirmed against your actual product and pack dimensions.

What utilities or site requirements should I plan for?

Typical requirements listed on this page include Working voltage: AC220V/110V 50-60HZ; Working pressure: 0.4-0.6 MPa; machine size: OD 8mm.

Can Lancing UK help match this machine to my application?

Yes. Lancing UK can review the product, pack format, required output, utilities and line-integration needs to confirm the right configuration before quotation.
