LU‑XG16F Automatic Bottle and Jar Screwing Capping Machine

Enquire now Arrange a Demonstration Call Now

Machine overview

Key information to help you specify the right configuration.

LU‑XG16F Automatic Bottle and Jar Screwing Capping Machine preview

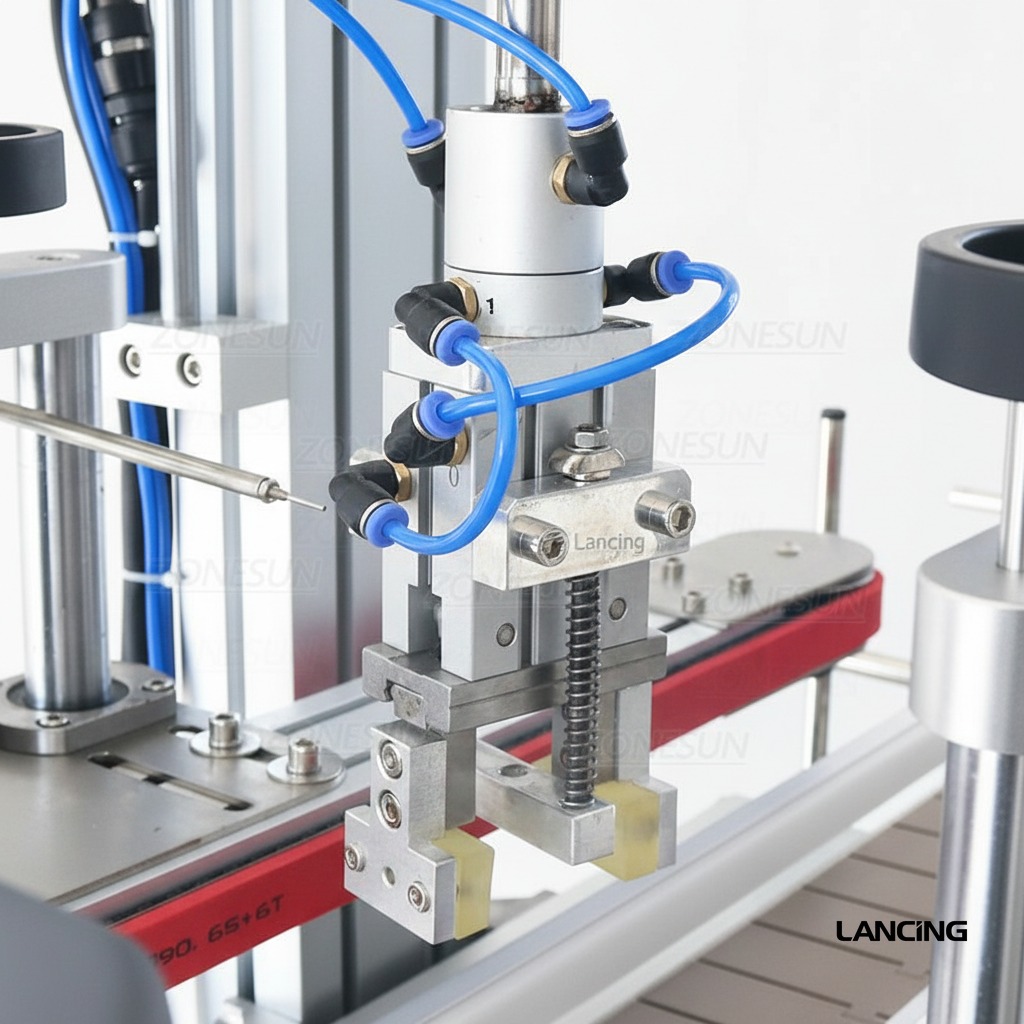

The Lancing UK LU‑XG16F Automatic Screwing Capping Machine is designed for fast and precise closure of bottles and jars. Featuring adjustable robotic arms, it accommodates various screw cap types, including flat and sprayer caps, with minimal setup time.

Send your product details, container or pack format and target output to discuss configuration, pricing guidance and lead times.

This page lists output at 20-60 bottles/minute (depending on bottle and cap size); format guidance including Bottle Height: 30-300mm; Cap Diameter: 18-70mm; site requirements including Voltage: AC220V/110V 50- 60HZ; Working Pressure: 0.4-0.6MPa. Lancing UK can review your product, container or pack format, target speed and site requirements to confirm the right configuration before quotation.

Throughput
20-60 bottles/minute (depending on bottle and cap size)
Actual throughput depends on the product, pack format, changeovers and the wider line setup.
Format range
30-300mm; 18-70mm
Compatibility is checked against your real bottle, cap, label, pouch or carton dimensions.
Utilities
AC220V/110V 50- 60HZ; 0.4-0.6MPa
Power, air and footprint requirements vary with the final machine configuration and options.

Specifications

Reference specification table. Final configuration is confirmed with the agreed scope, options and pack format.

ParameterValue
ParameterValue
AC220V/110V50- 60HZ
About19306501800mm
Machine ModelLU-XG16F
VoltageAC220V/110V 50- 60HZ
Bottle Height30-300mm
Cap Diameter18-70mm
Bottle Diameter20-160mm
Working Speed20-60 bottles/minute (depending on bottle and cap size)
Working Pressure0.4-0.6MPa
Machine SizeAbout 1930*650*1800mm
Machine WeightAbout 141kg
Package SizeAbout 1970*360*1840mm
Gross WeightAbout 284kg

CAD / dimensions

Site requirements

  • Voltage: AC220V/110V 50- 60HZ
  • Working Pressure: 0.4-0.6MPa
  • Machine size: About 1930*650*1800mm
For the most accurate proposal, include the product, container or pack dimensions, closure or label format, required units per hour and available utilities.

Detailed layout and dimension drawings can be supplied during quotation and project planning where required.

Quick answers

Practical information to help compare this machine with alternative packaging solutions.

What is LU‑XG16F Automatic Bottle and Jar Screwing Capping Machine used for?

The Lancing UK LU‑XG16F Automatic Screwing Capping Machine is designed for fast and precise closure of bottles and jars. Featuring adjustable robotic arms, it accommodates various screw cap types, including flat and sprayer caps, with minimal setup time. This page lists output at 20-60 bottles/minute (depending on bottle and cap size); format guidance including Bottle Height: 30-300mm; Cap Diameter: 18-70mm; site requirements including Voltage: AC220V/110V 50- 60HZ; Working Pressure: 0.4-0.6MPa.

What output can LU‑XG16F Automatic Bottle and Jar Screwing Capping Machine achieve?

This page lists output at 20-60 bottles/minute (depending on bottle and cap size). Actual throughput depends on the product, container or pack format, changeover requirements and the wider line setup.

What formats does LU‑XG16F Automatic Bottle and Jar Screwing Capping Machine suit?

This page lists format guidance as Bottle Height: 30-300mm; Cap Diameter: 18-70mm. Final suitability is confirmed against your actual product and pack dimensions.

What utilities or site requirements should I plan for?

Typical requirements listed on this page include Voltage: AC220V/110V 50- 60HZ; Working Pressure: 0.4-0.6MPa; machine size: About 1930*650*1800mm.

Can Lancing UK help match this machine to my application?

Yes. Lancing UK can review the product, pack format, required output, utilities and line-integration needs to confirm the right configuration before quotation.
