LU‑VTDP40 4 Heads Flow Diaphragm Pump Liquid Filling Machine

Enquire now Arrange a Demonstration Call Now

Machine overview

Key information to help you specify the right configuration.

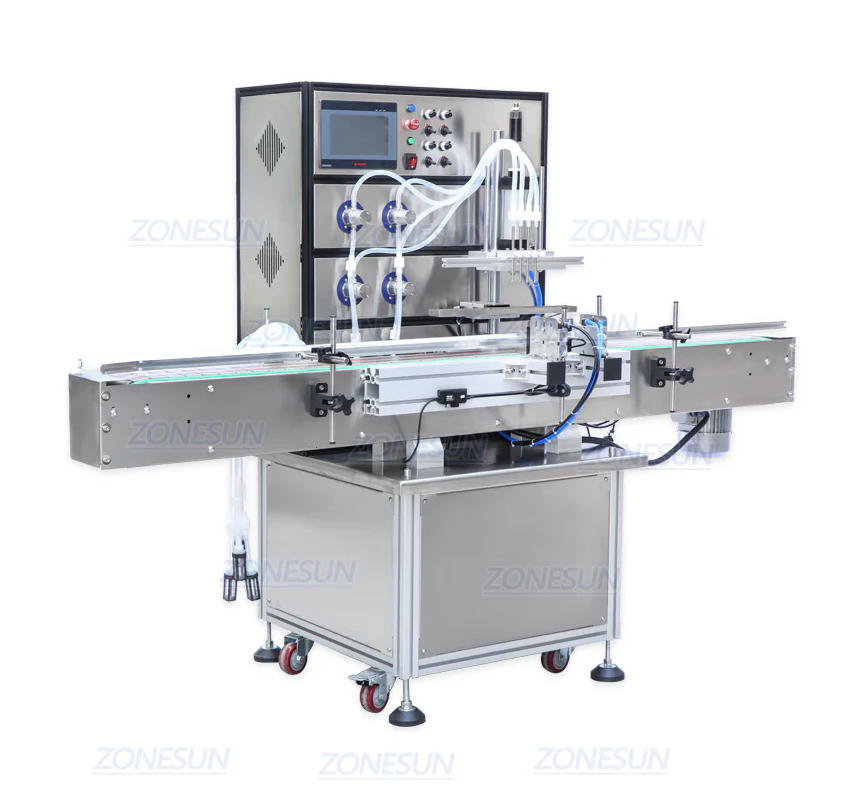

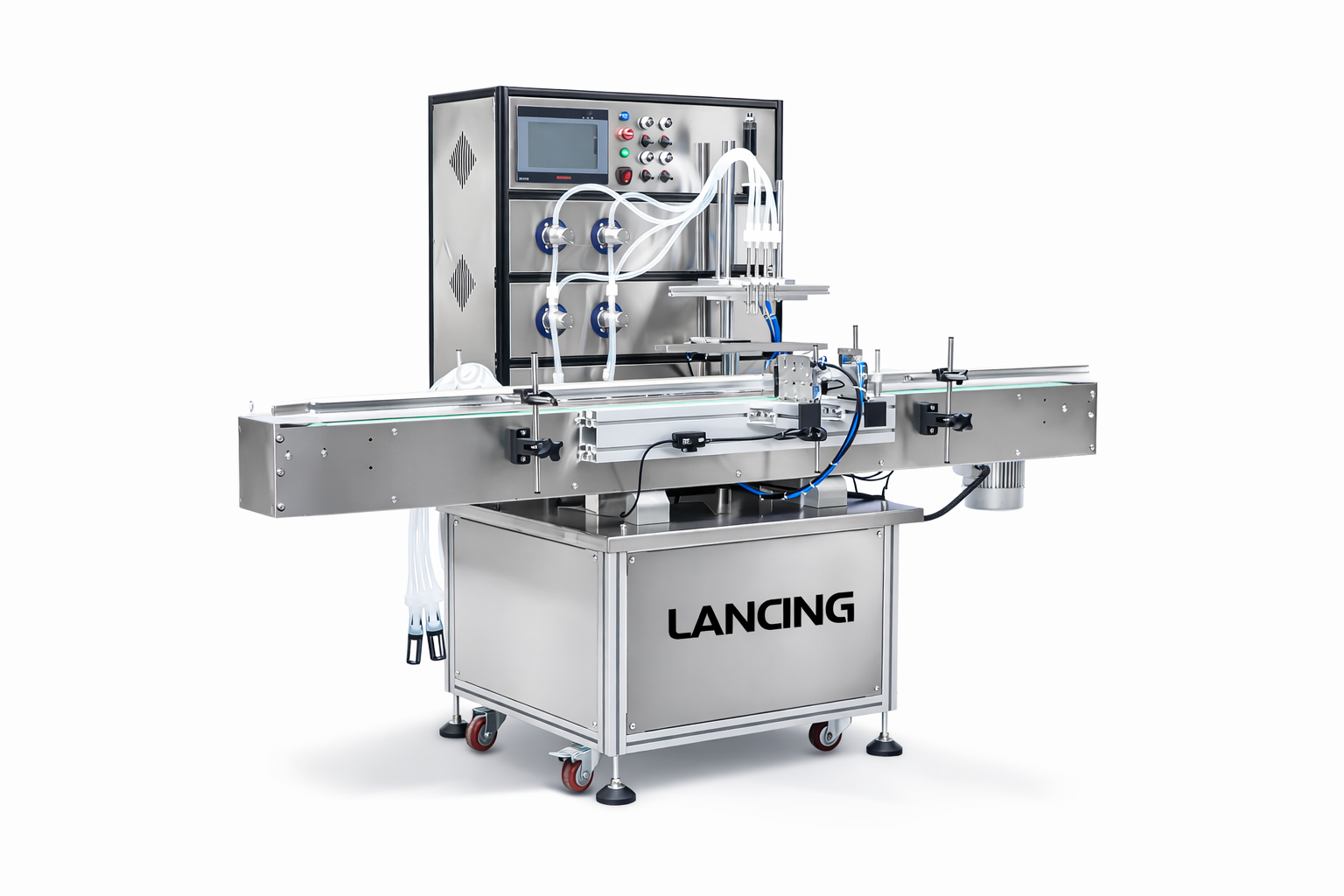

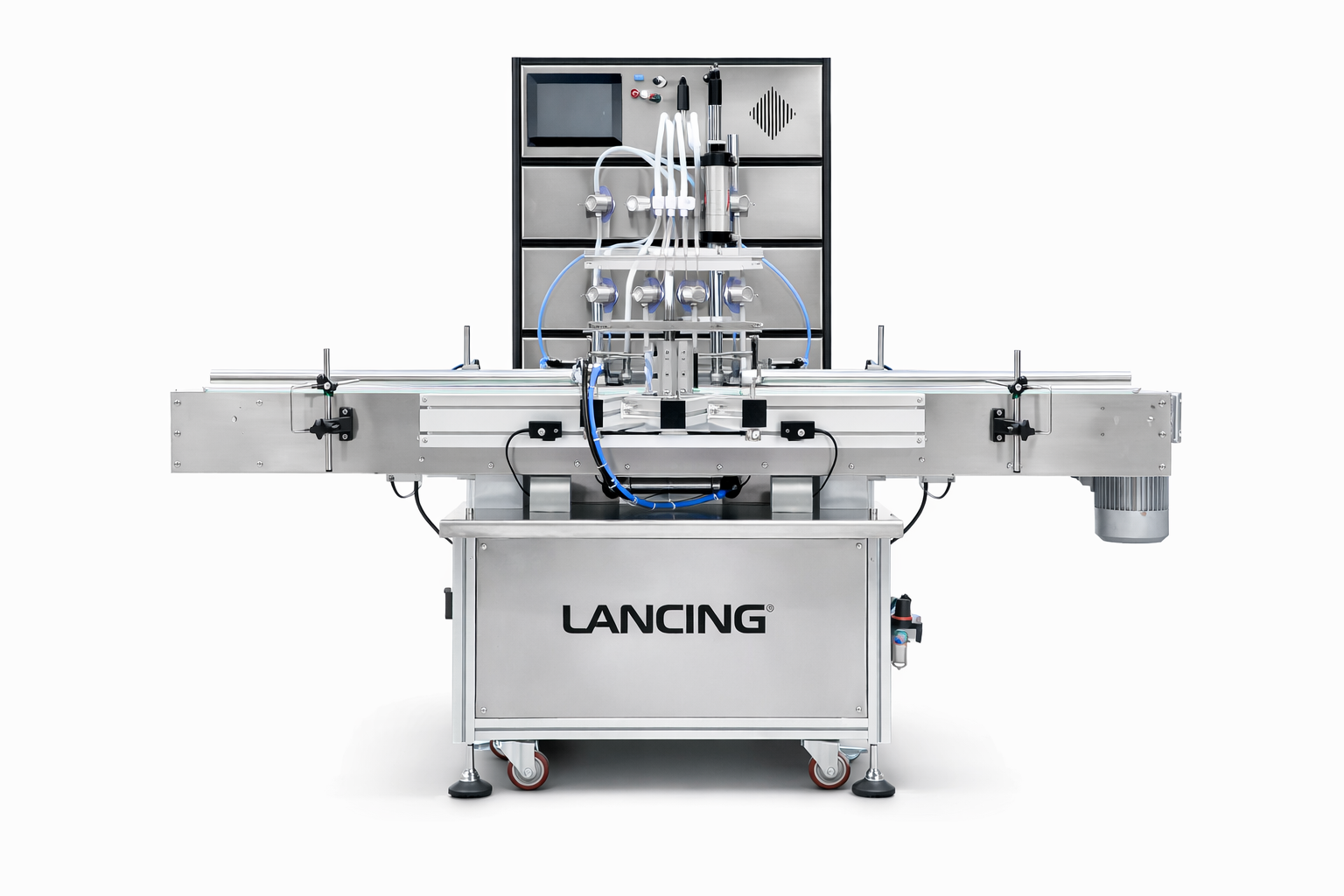

4 Heads Flow Diaphragm Pump Liquid Filling Machine preview

The LU-VTDP40 liquid filling machine is equipped with a high-performance diaphragm pump and supports automatic operation. With a maximum flow rate of 40L/min and four independently controlled filling nozzles, it can fill 30-45 bottles per minute, making it ideal for thicker liquids such as gel, hand sanitizer, shampoo, and laundry detergent.

Send your product details, container or pack format and target output to discuss configuration, pricing guidance and lead times.

This page lists output at 30-45bottles/min(depending on bottles and filling liquid); site requirements including Power supply: 220V-50HZ/110V-60HZ; The whole machine power: 1500W. Lancing UK can review your product, container or pack format, target speed and site requirements to confirm the right configuration before quotation.

Throughput
30-45bottles/min(depending on bottles and filling liquid)
Actual throughput depends on the product, pack format, changeovers and the wider line setup.
Format range
Matched to your container, closure or pack format
Compatibility is checked against your real bottle, cap, label, pouch or carton dimensions.
Utilities
220V-50HZ/110V-60HZ; 1500W
Power, air and footprint requirements vary with the final machine configuration and options.

Machine in operation

Video demonstration. (Set the Video URL in your product data.)

Specifications

Reference specification table. Final configuration is confirmed with the agreed scope, options and pack format.

ParameterValue
ParameterValue
Machine modelLU-VTDP40
Power supply220V-50HZ/110V-60HZ
The whole machine power1500W
Max flow rate40L/min
Material of pumpDiaphragm Pump
Filling accuracy≤100ml deviation≤±1ml
Filling speed30-45bottles/min(depending on bottles and filling liquid)
Packing weightAbout 150kg
Packing sizeAbout192011101800mm
Size of air compressor connectorOD8mm

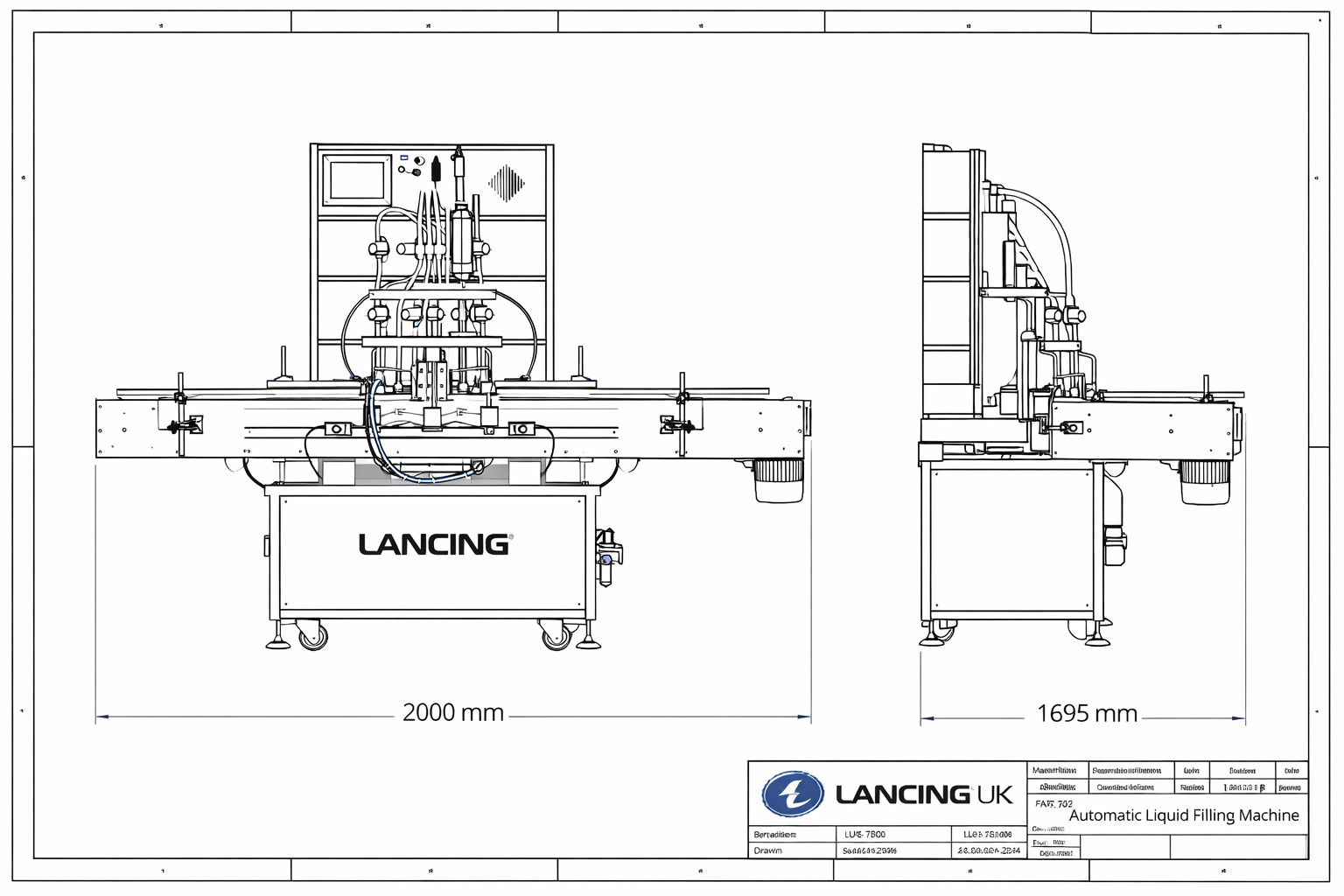

CAD / dimensions

CAD/dimensions are provided in a pop‑out viewer.

View CAD drawing

Site requirements

  • Power supply: 220V-50HZ/110V-60HZ
  • The whole machine power: 1500W
  • Machine size: About192011101800mm
For the most accurate proposal, include the product, container or pack dimensions, closure or label format, required units per hour and available utilities.

Quick answers

Practical information to help compare this machine with alternative packaging solutions.

What is LU‑VTDP40 4 Heads Flow Diaphragm Pump Liquid Filling Machine used for?

The LU-VTDP40 liquid filling machine is equipped with a high-performance diaphragm pump and supports automatic operation. With a maximum flow rate of 40L/min and four independently controlled filling nozzles, it can fill 30-45 bottles per minute, making it ideal for thicker liquids such as gel, hand sanitizer, shampoo, and laundry detergent. This page lists output at 30-45bottles/min(depending on bottles and filling liquid); site requirements including Power supply: 220V-50HZ/110V-60HZ; The whole machine power: 1500W.

What output can LU‑VTDP40 4 Heads Flow Diaphragm Pump Liquid Filling Machine achieve?

This page lists output at 30-45bottles/min(depending on bottles and filling liquid). Actual throughput depends on the product, container or pack format, changeover requirements and the wider line setup.

What formats does LU‑VTDP40 4 Heads Flow Diaphragm Pump Liquid Filling Machine suit?

Suitability depends on the product characteristics, fill range, container format and how much adjustment is needed between SKUs.

What utilities or site requirements should I plan for?

Typical requirements listed on this page include Power supply: 220V-50HZ/110V-60HZ; The whole machine power: 1500W; machine size: About192011101800mm.

Can Lancing UK help match this machine to my application?

Yes. Lancing UK can review the product, pack format, required output, utilities and line-integration needs to confirm the right configuration before quotation.
