Machine in operation
Video demonstration. (Set the Video URL in your product data.)
Specifications
Reference specification table. Final configuration is confirmed with the agreed scope, options and pack format.
| Parameter | Value |
|---|
| Parameter | Value |
|---|
| Machine Model | LU-YTZL8A |
|---|
| Voltage | 220 V / 110 V, 50-60 Hz |
|---|
| Filling Heads | 8 |
|---|
| Air Pumping | Rate 5.5 L/s |
|---|
| Air Pressure | 0.5-0.8 MPa |
|---|
| Liquid Level | Accuracy bn±1 mm |
|---|
| Applicable Viscosity | Up to 20 Cps (static viscosity) |
|---|
| Working Speed | Approx. 20-60 bottles/min |
|---|
| Bottle Height | ≤250 mm |
|---|
| Bottle Opening Size | φ4.5 mm to φ28 mm |
|---|
| Adjustable Fill Level | ≤27 mm from bottle mouth |
|---|
| Machine Dimensions (L×W×H) | 2000 × 1395 × 1715 mm |
|---|
| Machine Weight | Approx. 480 kg |
|---|

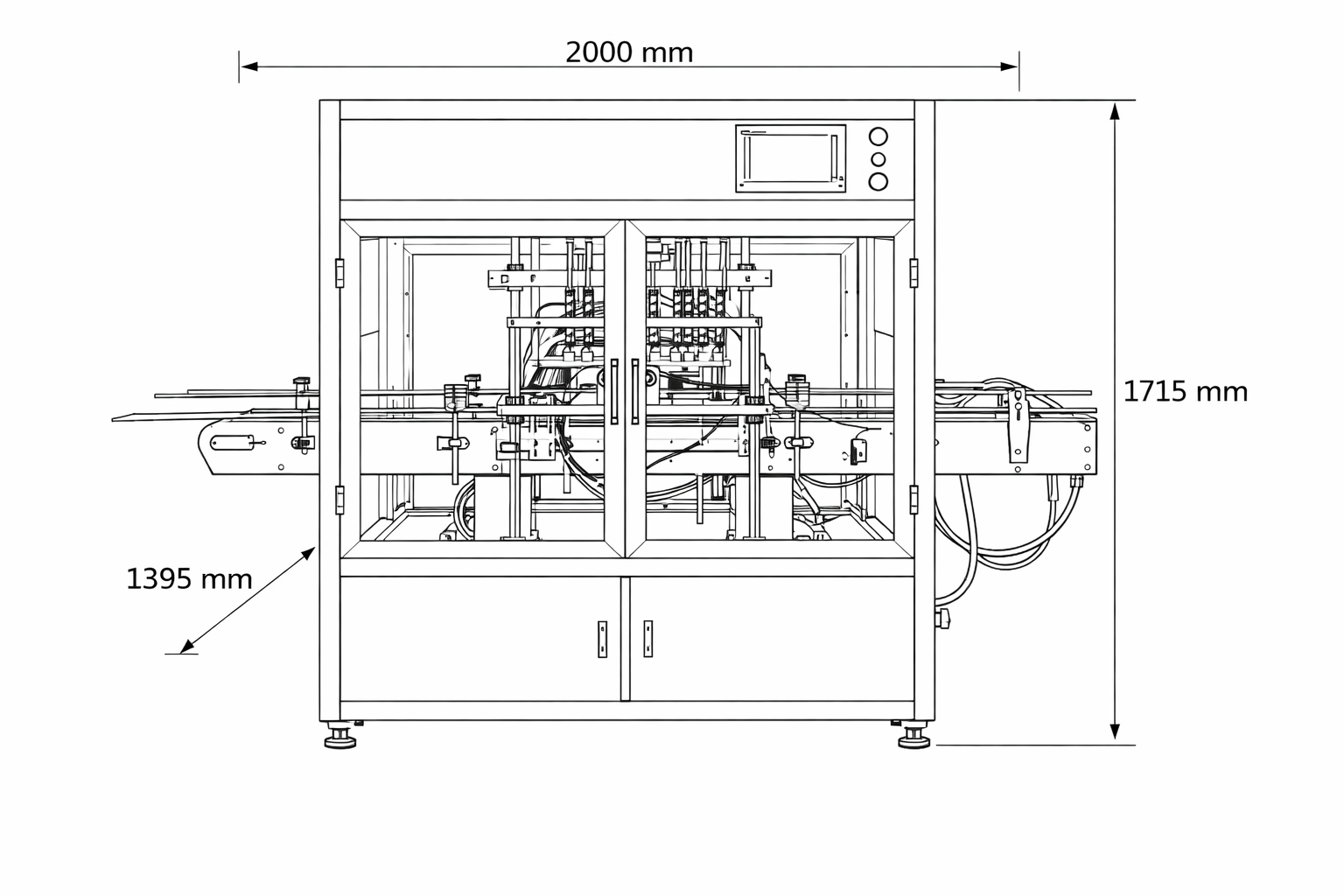

CAD / dimensions
CAD/dimensions are provided in a pop‑out viewer.
Site requirements
- Voltage: 220 V / 110 V, 50-60 Hz
- Air Pressure: 0.5-0.8 MPa
- Machine size: φ4.5 mm to φ28 mm
For the most accurate proposal, include the product, container or pack dimensions, closure or label format, required units per hour and available utilities.
Quick answers
Practical information to help compare this machine with alternative packaging solutions.
What is LU‑YTZL8A Automatic 8‑Nozzle Vacuum Liquid Filling Machine used for?

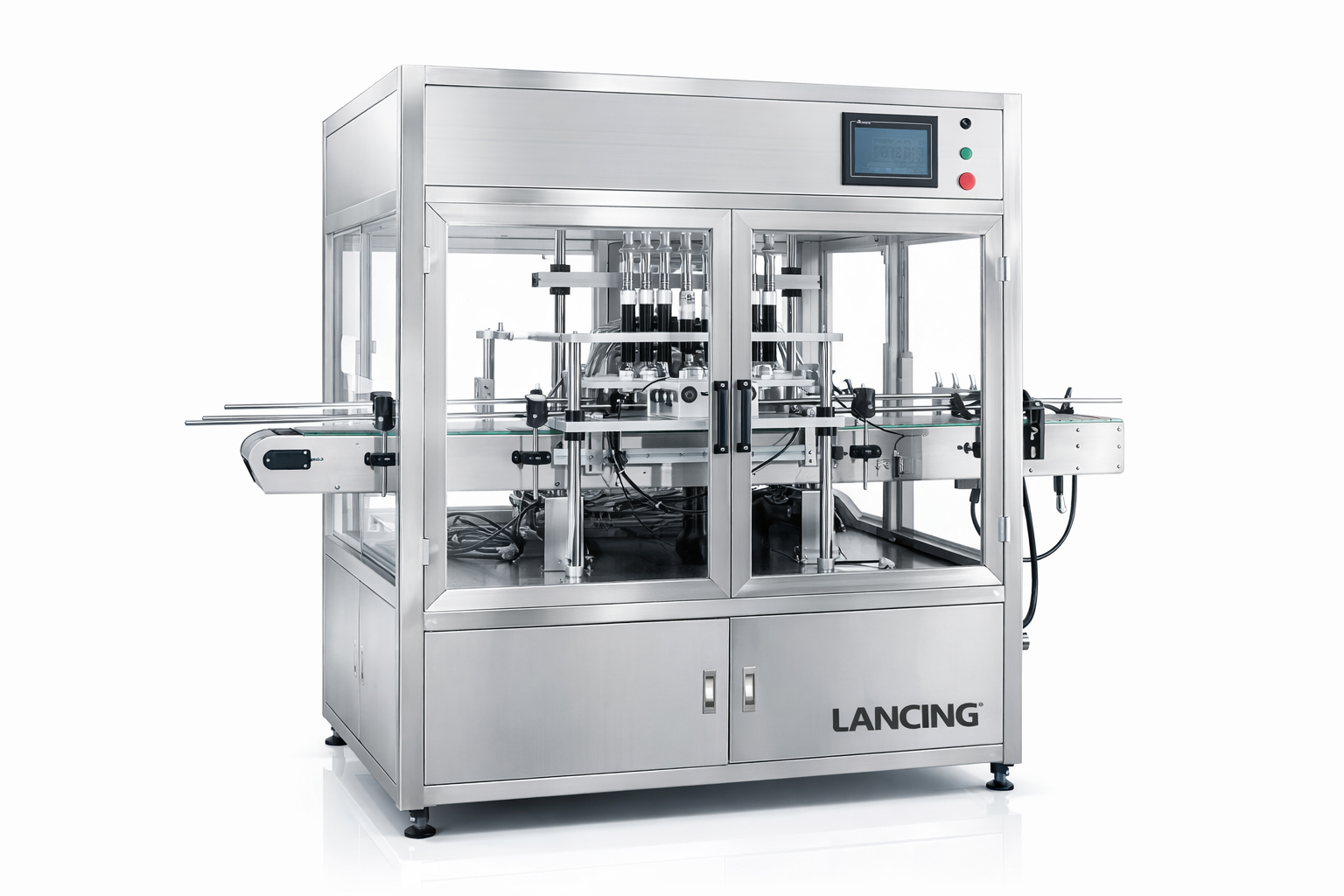

The Lancing UK LU‑YTZL8A Automatic 8‑Nozzle Vacuum Liquid Filling Machine is engineered for precision and product integrity. Using a vacuum filling method, it maintains the original quality and characteristics of liquids, making it ideal for perfumes, fresh juices, essential oils, and other foamy or delicate products. This page lists output at Approx. 20-60 bottles/min; format guidance including Applicable Viscosity: Up to 20 Cps (static viscosity); Bottle Height: ≤250 mm; site requirements including Voltage: 220 V / 110 V, 50-60 Hz; Air Pressure: 0.5-0.8 MPa.
What output can LU‑YTZL8A Automatic 8‑Nozzle Vacuum Liquid Filling Machine achieve?
This page lists output at Approx. 20-60 bottles/min. Actual throughput depends on the product, container or pack format, changeover requirements and the wider line setup.
What formats does LU‑YTZL8A Automatic 8‑Nozzle Vacuum Liquid Filling Machine suit?
This page lists format guidance as Applicable Viscosity: Up to 20 Cps (static viscosity); Bottle Height: ≤250 mm. Final suitability is confirmed against your actual product and pack dimensions.
What utilities or site requirements should I plan for?
Typical requirements listed on this page include Voltage: 220 V / 110 V, 50-60 Hz; Air Pressure: 0.5-0.8 MPa; machine size: φ4.5 mm to φ28 mm.
Can Lancing UK help match this machine to my application?
Yes. Lancing UK can review the product, pack format, required output, utilities and line-integration needs to confirm the right configuration before quotation.
