Machine in operation
Video demonstration. (Set the Video URL in your product data.)
Specifications
Reference specification table. Final configuration is confirmed with the agreed scope, options and pack format.
| Parameter | Value |
|---|
| Parameter | Value |
|---|
| Model | LU‑YTGt‑4PX |
|---|
| Voltage | 220 V / 110 V, 50-60 Hz |
|---|
| Power | 2 kW |
|---|
| Filling Heads | 4 heads (customizable) |
|---|
| Pump Type | Piston Pump |
|---|
| Filling Range | 5-100ml / 10-300ml / 50-500ml / 100-1000ml / 300-3000ml / 1000-5000ml |
|---|
| Working Speed | 20-50 bottles/min (depends on bottle size & material) |
|---|
| Filling Accuracy | < ±1% |
|---|
| Air Pressure Requirement | 0.5-0.7MPa |
|---|
| Conveyor Size (L × W) | Approx. 2000 × 100mm |
|---|

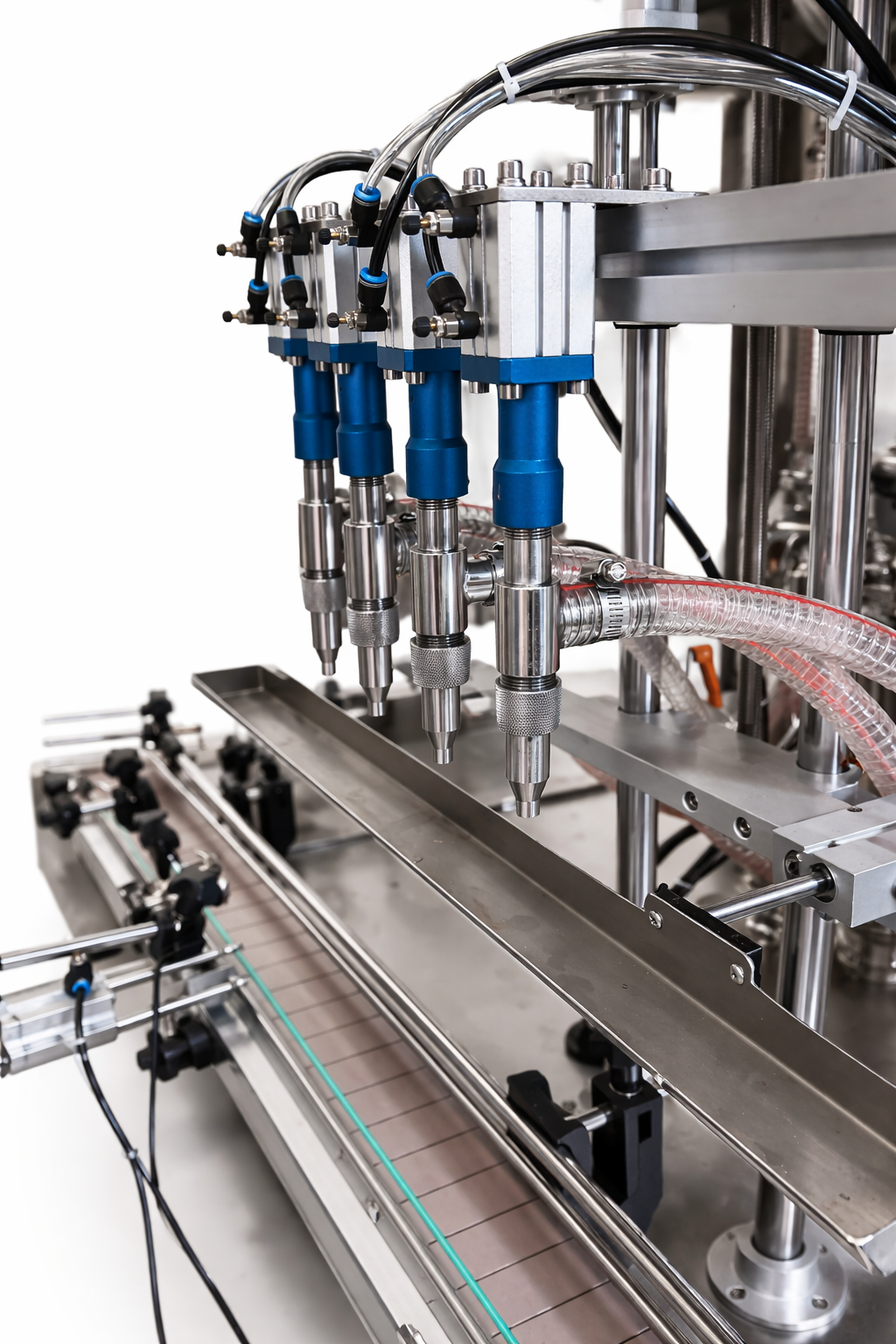

| Filling Nozzle Diameter | φ10mm |
|---|
| Machine Dimensions (L × W × H) | Approx. 975 × 1020 × 2010mm |
|---|
| Machine Weight | Approx. 329kg |
|---|

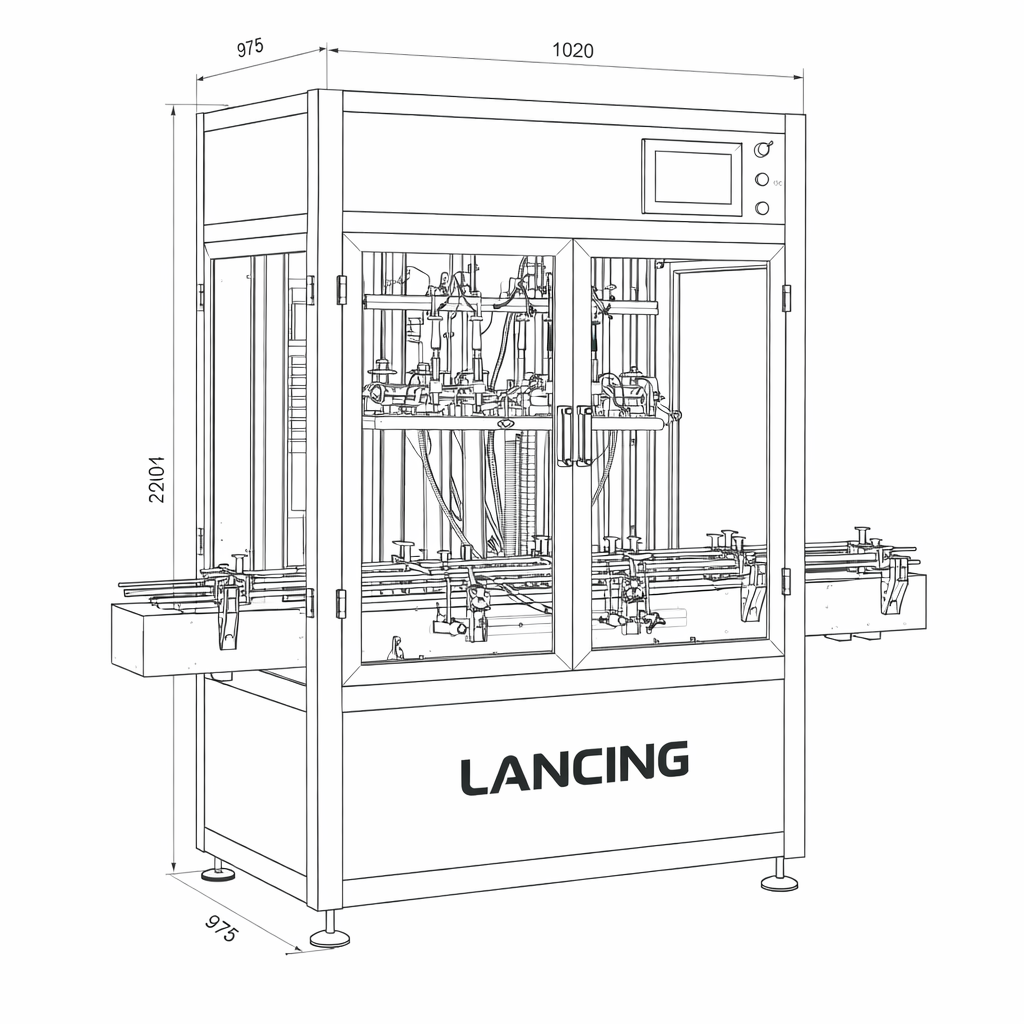

CAD / dimensions
CAD/dimensions are provided in a pop‑out viewer.
Site requirements
- Voltage: 220 V / 110 V, 50-60 Hz
- Power: 2 kW
- Air Pressure Requirement: 0.5-0.7MPa
- Machine size: Approx. 2000 × 100mm
For the most accurate proposal, include the product, container or pack dimensions, closure or label format, required units per hour and available utilities.
Quick answers
Practical information to help compare this machine with alternative packaging solutions.

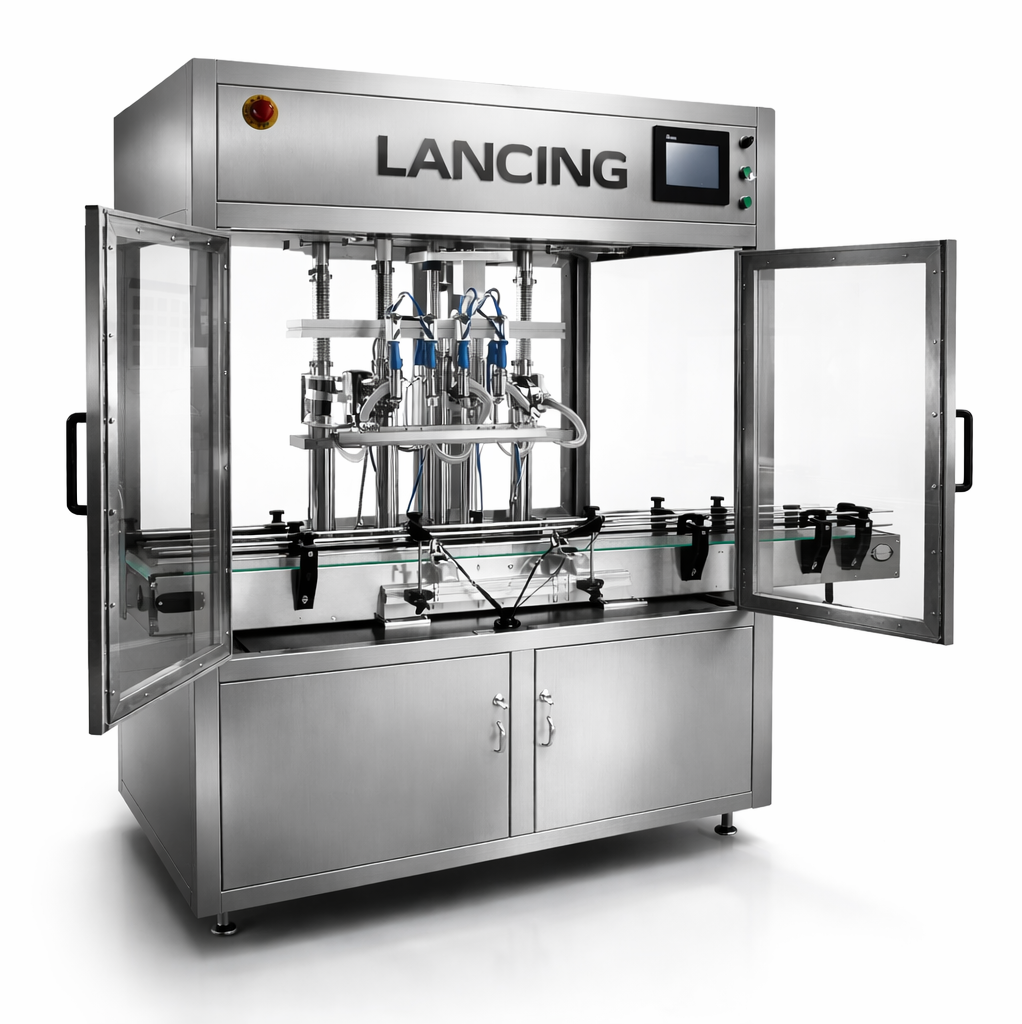

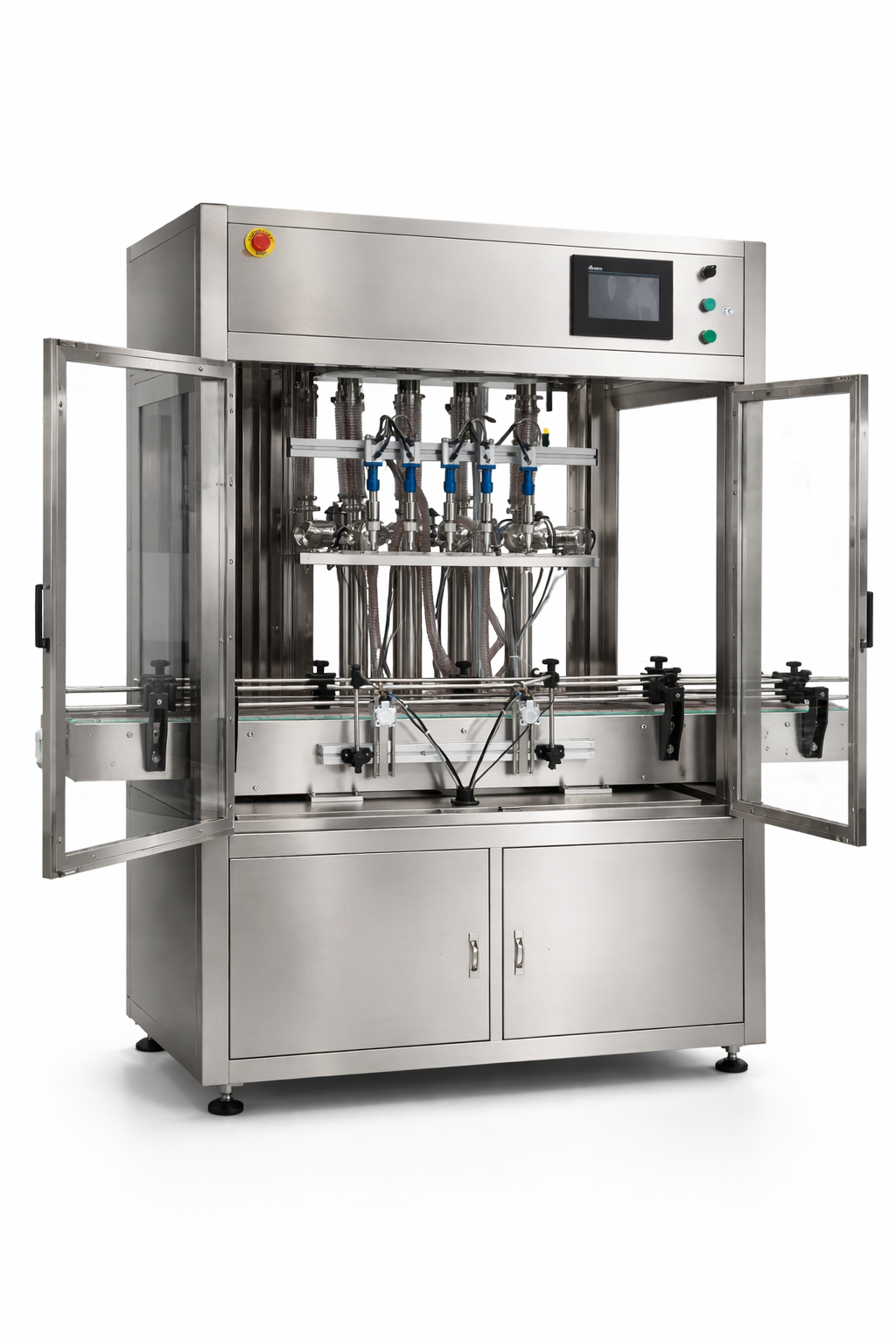

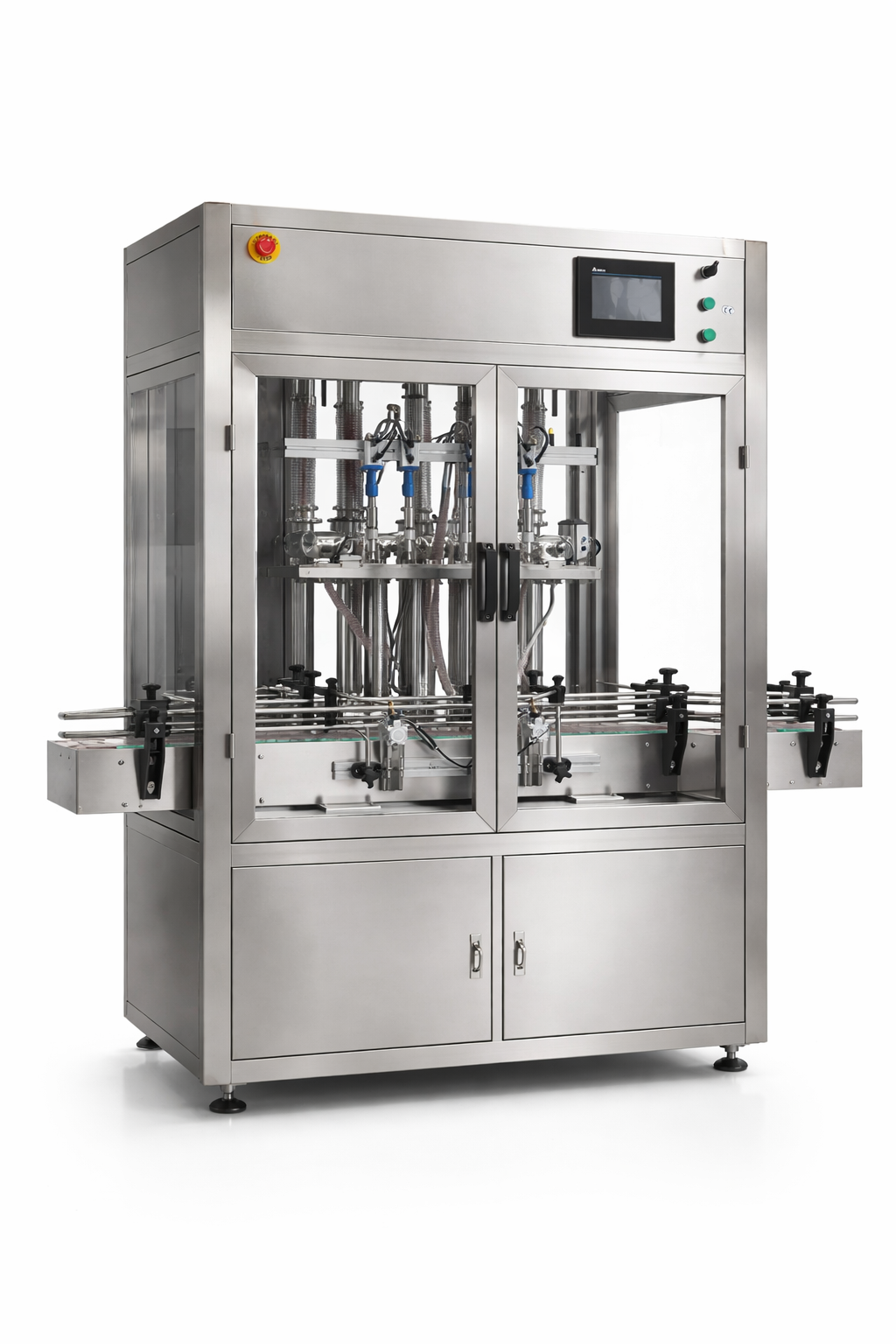

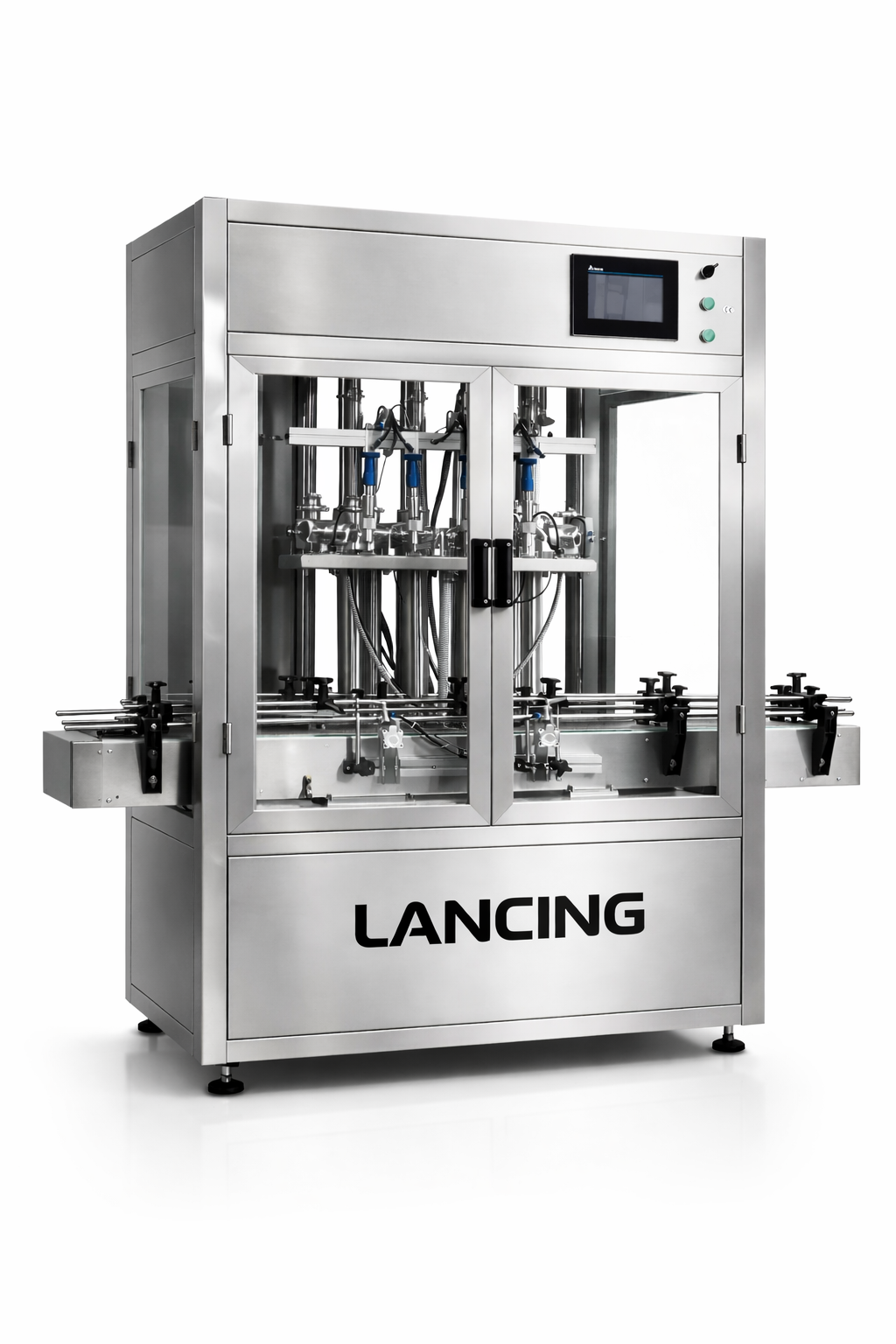

What is LU‑YTGt 4‑Head Piston Paste Filling Machine used for?

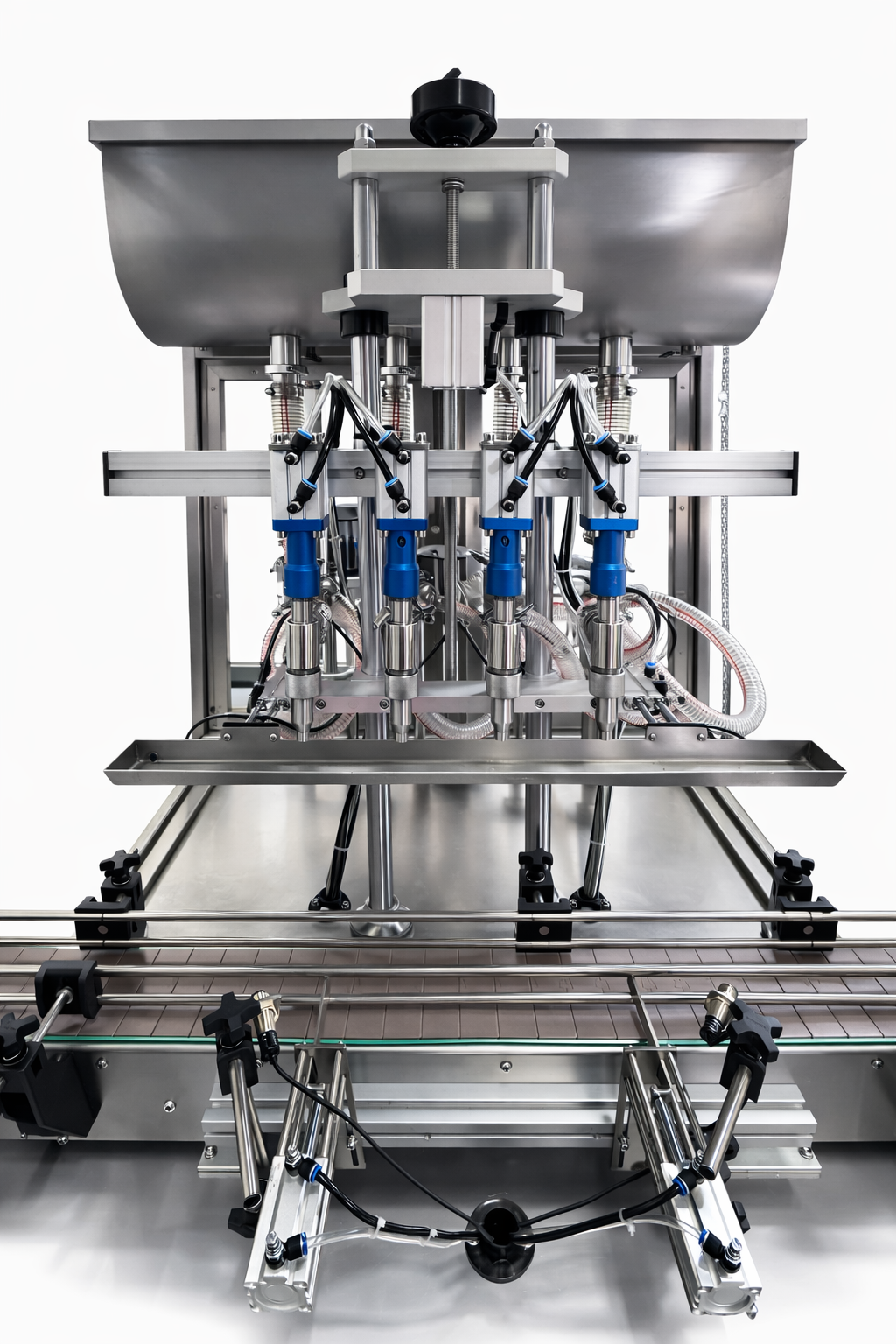

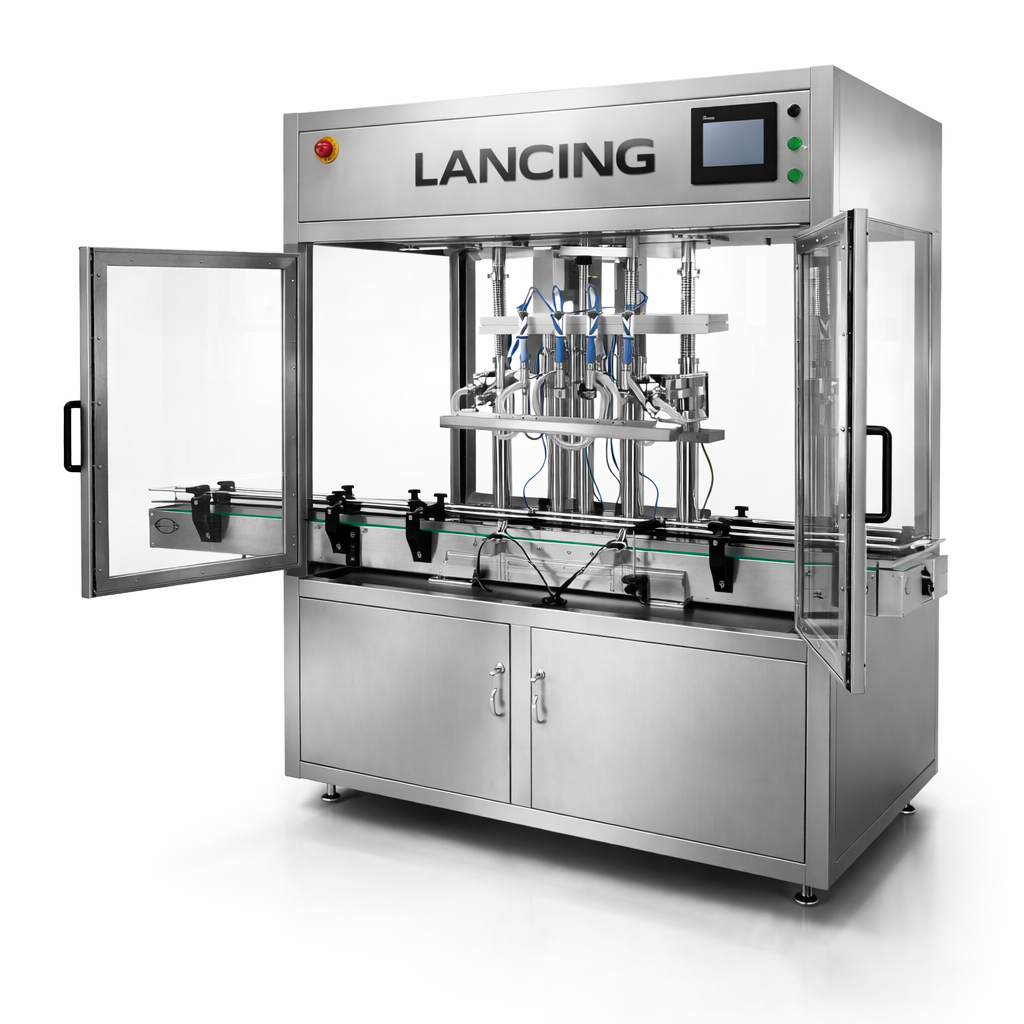

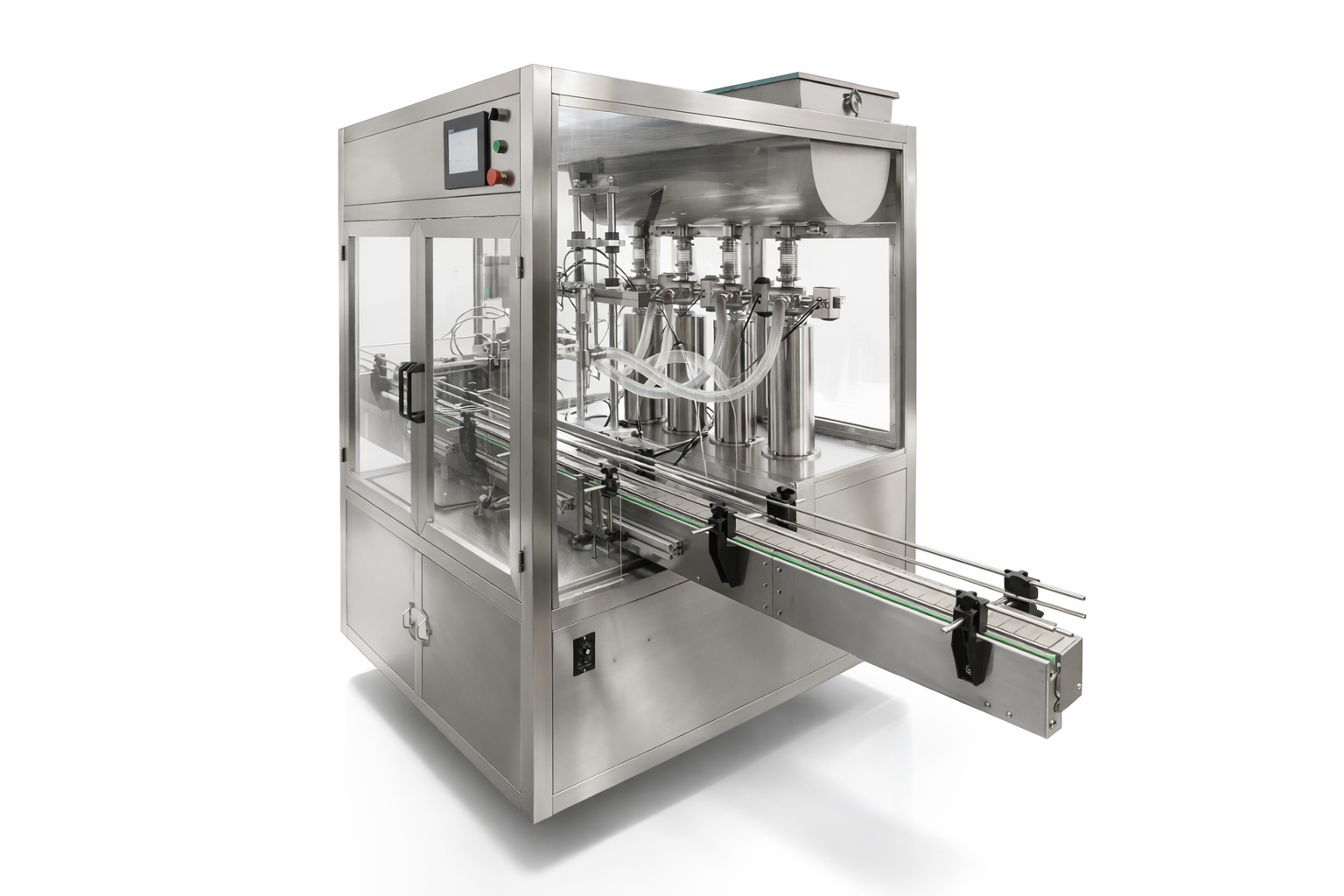

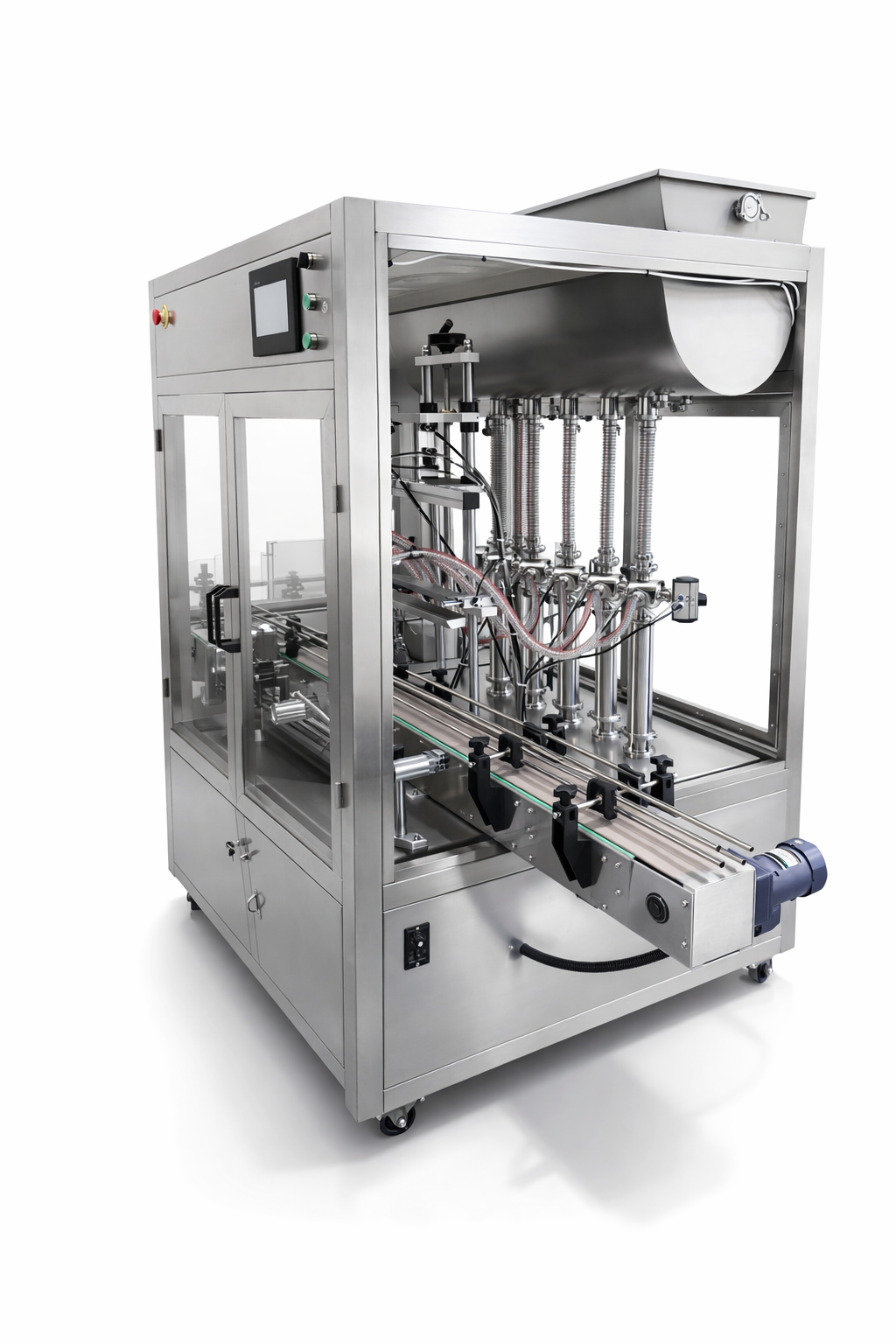

The Lancing UK four‑Head Piston Filling Machine is engineered for high‑precision filling of pastes and liquids. Featuring a 160 L large hopper and feeding pump, it ensures smooth material transfer for continuous production. This page lists output at 20-50 bottles/min (depends on bottle size & material); format guidance including Filling Range: 5-100ml / 10-300ml / 50-500ml / 100-1000ml / 300-3000ml / 1000-5000ml; site requirements including Voltage: 220 V / 110 V, 50-60 Hz; Power: 2 kW.
What output can LU‑YTGt 4‑Head Piston Paste Filling Machine achieve?
This page lists output at 20-50 bottles/min (depends on bottle size & material). Actual throughput depends on the product, container or pack format, changeover requirements and the wider line setup.
What formats does LU‑YTGt 4‑Head Piston Paste Filling Machine suit?
This page lists format guidance as Filling Range: 5-100ml / 10-300ml / 50-500ml / 100-1000ml / 300-3000ml / 1000-5000ml. Final suitability is confirmed against your actual product and pack dimensions.
What utilities or site requirements should I plan for?
Typical requirements listed on this page include Voltage: 220 V / 110 V, 50-60 Hz; Power: 2 kW; machine size: Approx. 2000 × 100mm.
Can Lancing UK help match this machine to my application?
Yes. Lancing UK can review the product, pack format, required output, utilities and line-integration needs to confirm the right configuration before quotation.
