Machine overview
Key information to help you specify the right configuration.

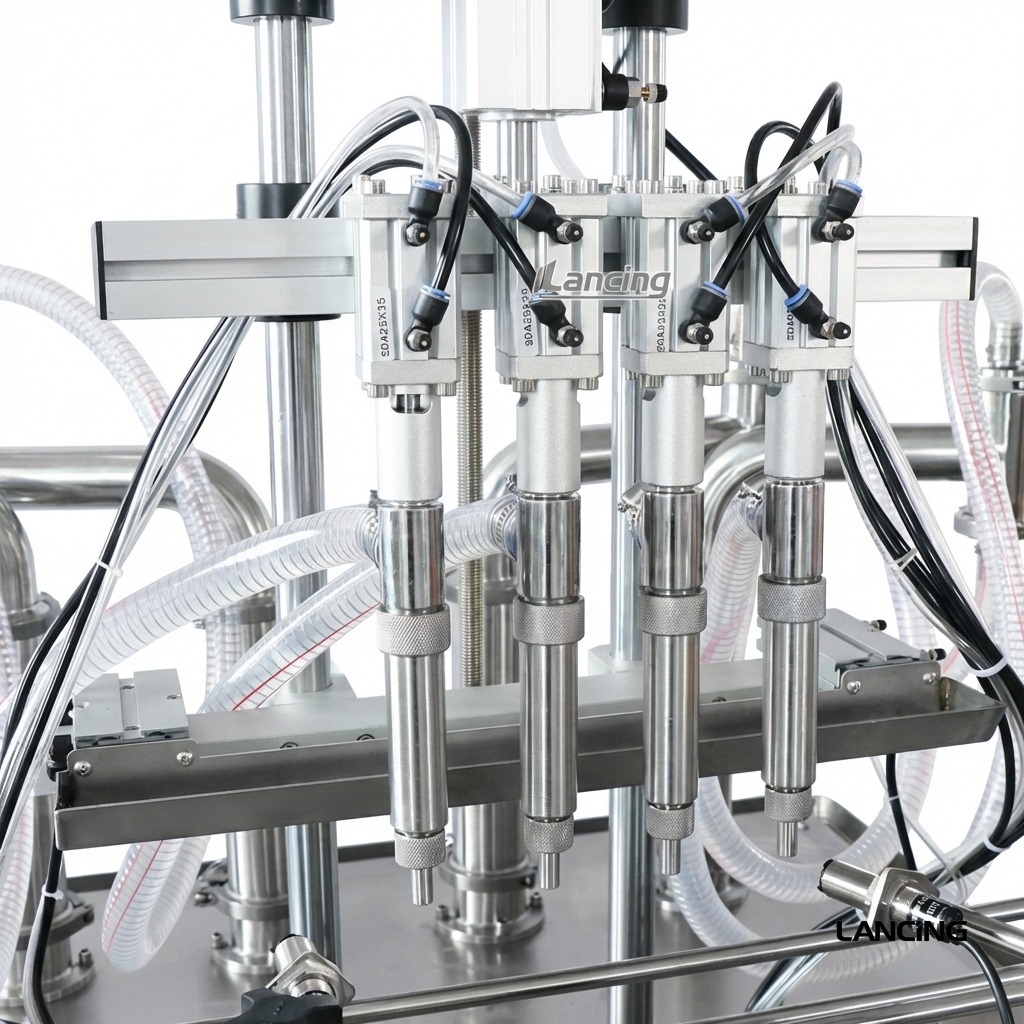

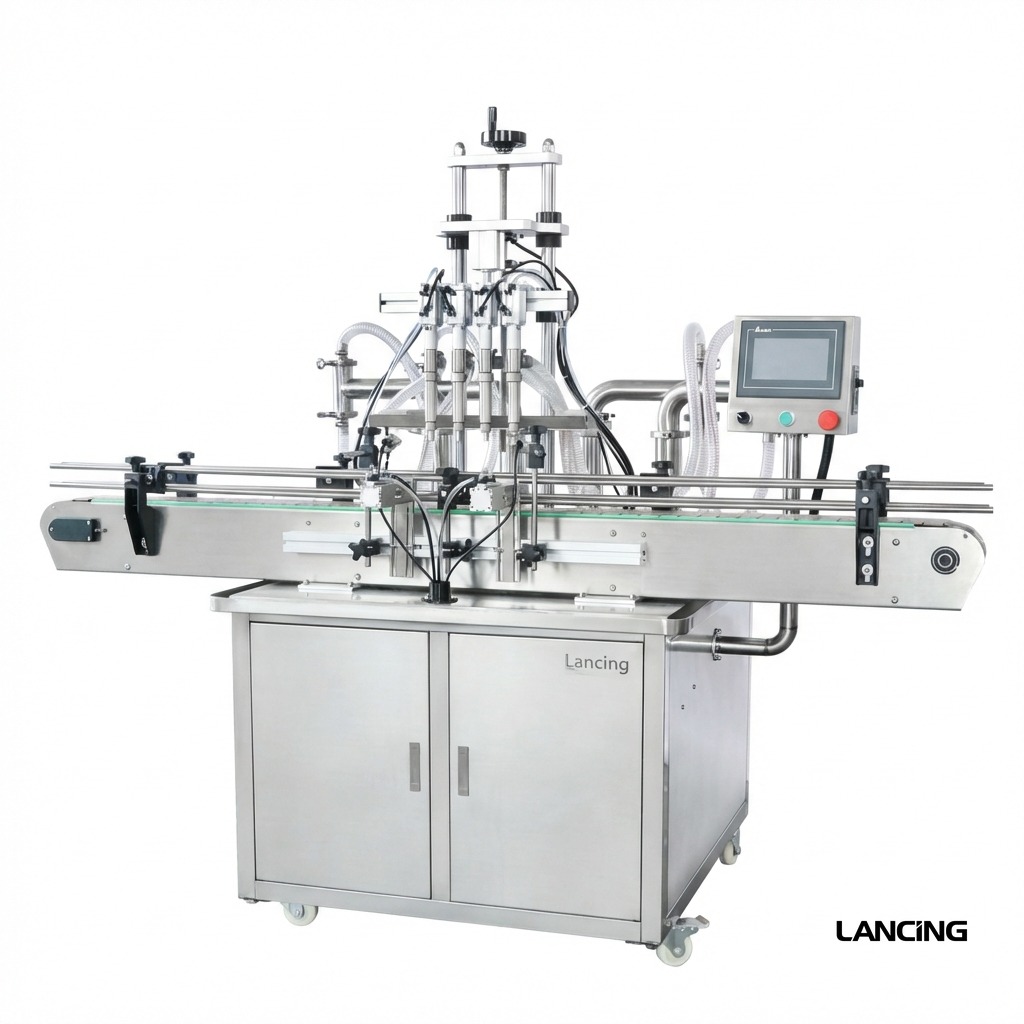

The LU-YT4T-4Y is a versatile liquid filling machine designed for products like shampoo, engine oil, and milk. Each of the four nozzles operates independently, allowing precise control over filling speed. Compatible with automatic labeling and capping machines, it’s ideal for building a fully automated production line in cosmetic, food, or chemical industries. Item Details Model LU-YT4T-4Y Voltage 110V / 220V, 50–60Hz, 800W Filling Range 5–100ml / 10–300ml / 50–500ml / 100–1000ml / 500–3000ml / 1000–5000ml Working Speed 20–35 bottles/min Filling Accuracy ≤ ±1% Air Pressure 0.5–0.7 MPa Air Compressor Connector Size φ10 mm Conveyor Length 2050 mm (standard) / 3050 mm (wider version) Conveyor Material Plastic (standard) / Stainless steel (custom version)Description
Throughput
Configurable (confirm during quote)
Throughput depends on product, format and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
Configured to your bottle, closure and fill volume.
Utilities
Site utilities to be confirmed
Voltage, air and installation requirements confirmed for your site.
