LU‑CL6T High-Volume Liquid Filling Machine

Enquire now Arrange a Demonstration Call Now

Machine overview

Key information to help you specify the right configuration.

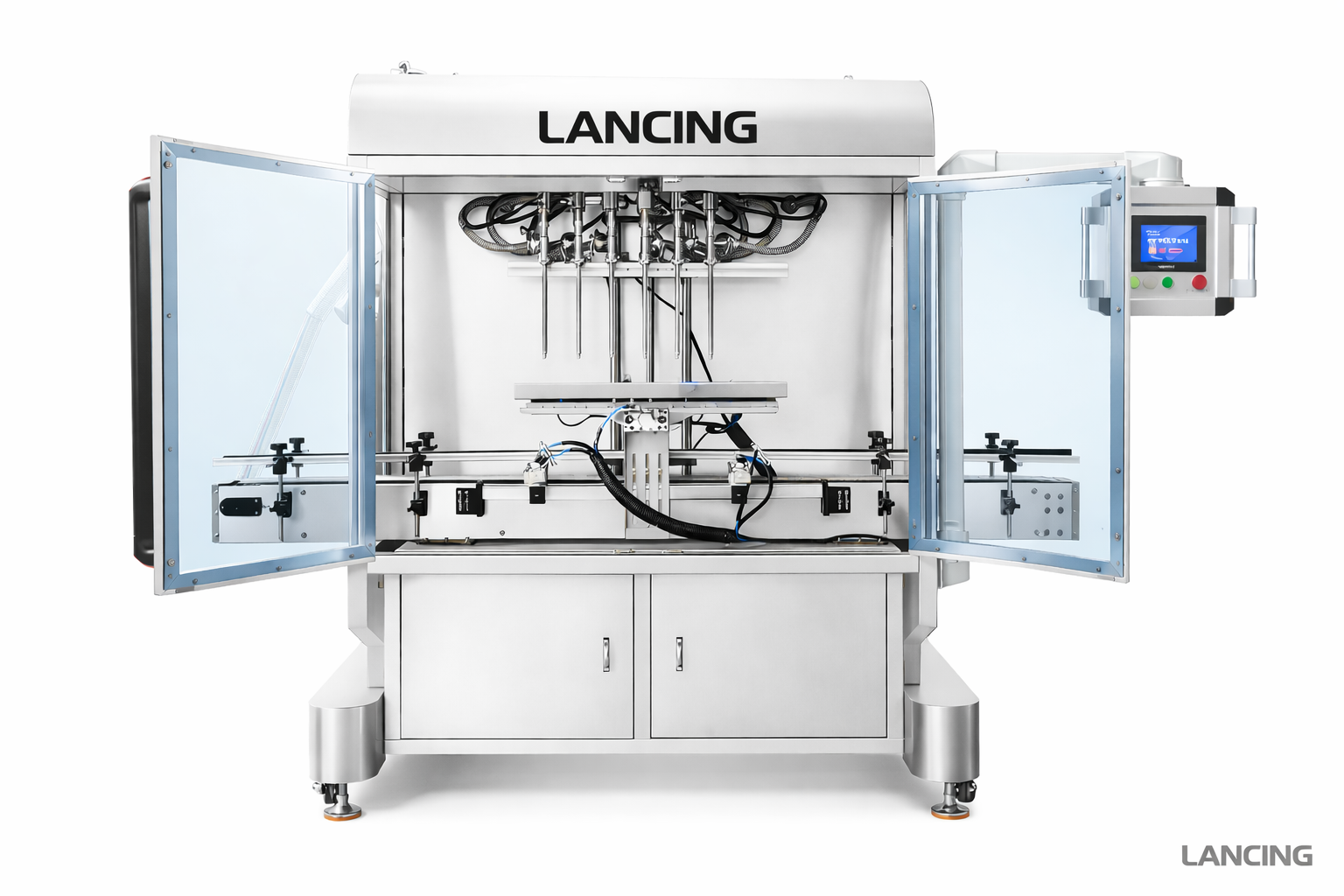

High-Volume Liquid Filling Machine preview

The Lancing UK LU-CL6T Automatic Liquid Filling Machine is built for high-volume, precision filling of liquids ranging from 500ml to 5000ml. Featuring six servo-driven magnetic pumps and a 320L storage tank with automatic level detection, it ensures consistent flow and accurate dosing.

Send your product details, container or pack format and target output to discuss configuration, pricing guidance and lead times.

This page lists output at Max 42 bottles/min (500ml); format guidance including Filling range: 500-5000ml; Applicable bottle: Height ≤ 330mm, Diameter ≤ 110mm; machine size of 2615×1621×2153mm. Lancing UK can review your product, container or pack format, target speed and site requirements to confirm the right configuration before quotation.

Throughput
Max 42 bottles/min (500ml)
Actual throughput depends on the product, pack format, changeovers and the wider line setup.
Format range
500-5000ml; Height ≤ 330mm, Diameter ≤ 110mm
Compatibility is checked against your real bottle, cap, label, pouch or carton dimensions.
Utilities
Power / air requirements confirmed at quotation stage
Power, air and footprint requirements vary with the final machine configuration and options.

Machine in operation

Video demonstration. (Set the Video URL in your product data.)

Specifications

Reference specification table. Final configuration is confirmed with the agreed scope, options and pack format.

ParameterValue
ParameterValue
ModelLU-CL6T
Filling range500-5000ml

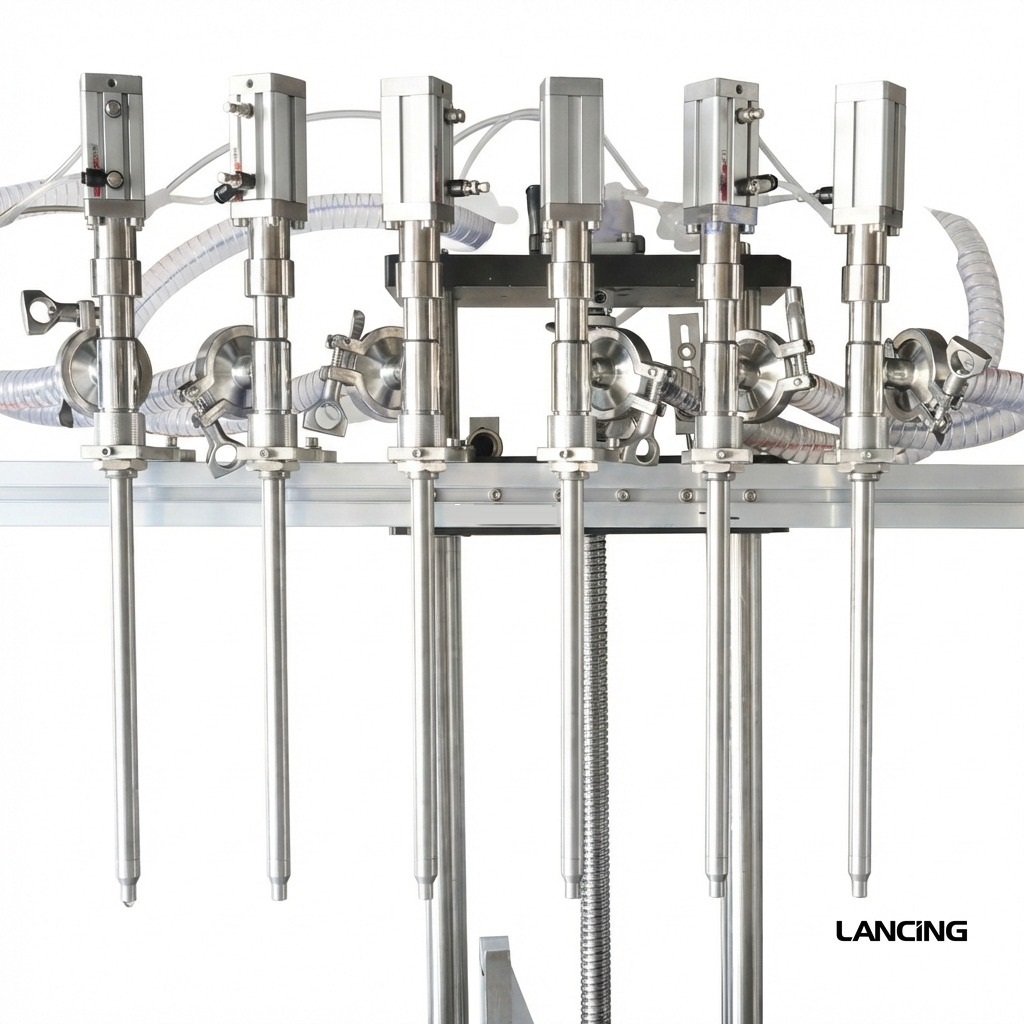

Filling headQuantity: 6, Size: 8mm

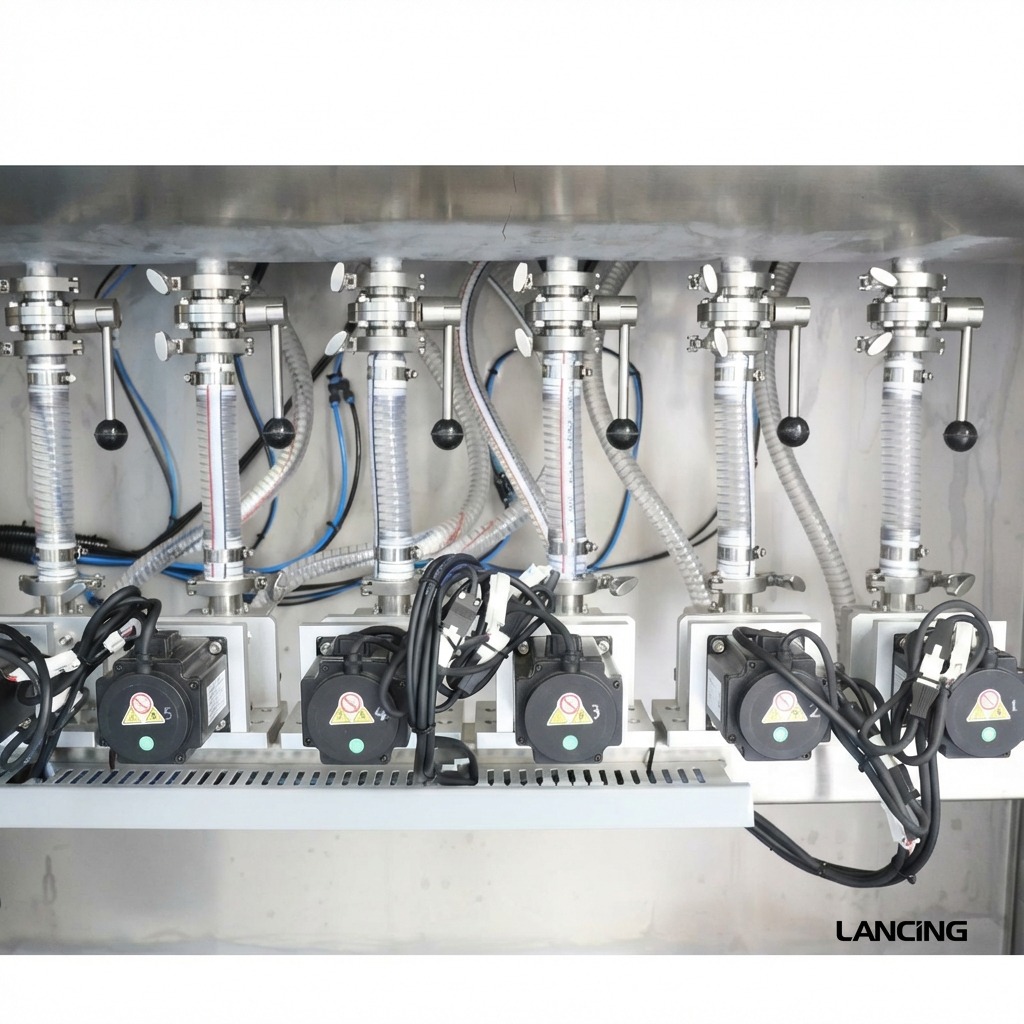

Filling pumpMagnetic pump, 45L/min, servo motor driven
CapacityMax 42 bottles/min (500ml)
Accuracy≤ ±1%
Applicable bottleHeight ≤ 330mm, Diameter ≤ 110mm
LiftingServo motor driven
ConveyorWidth: 114mm, Length: 2422mm
Storage tank320L
Size (L×W×H)2615×1621×2153mm
Weight752kg

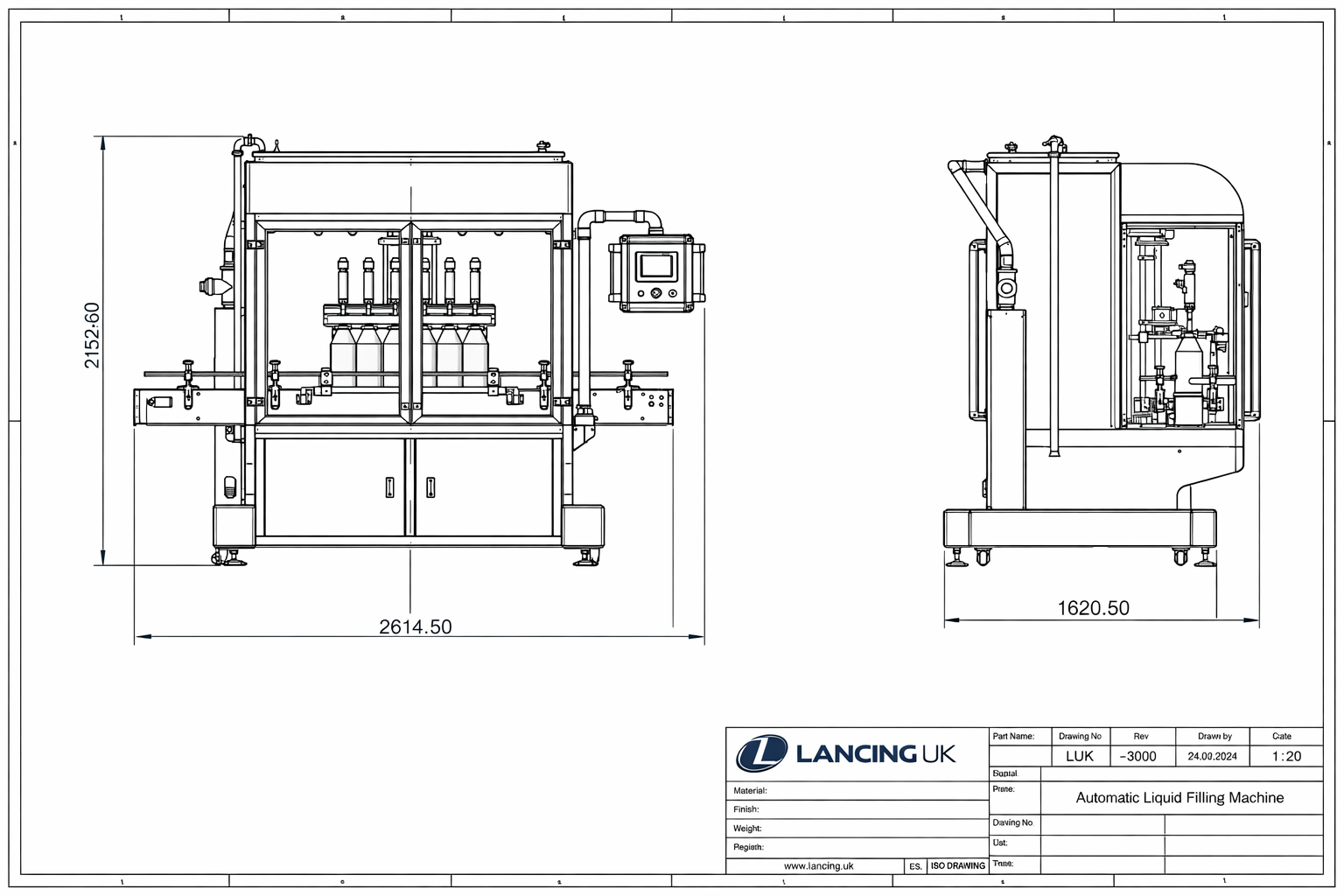

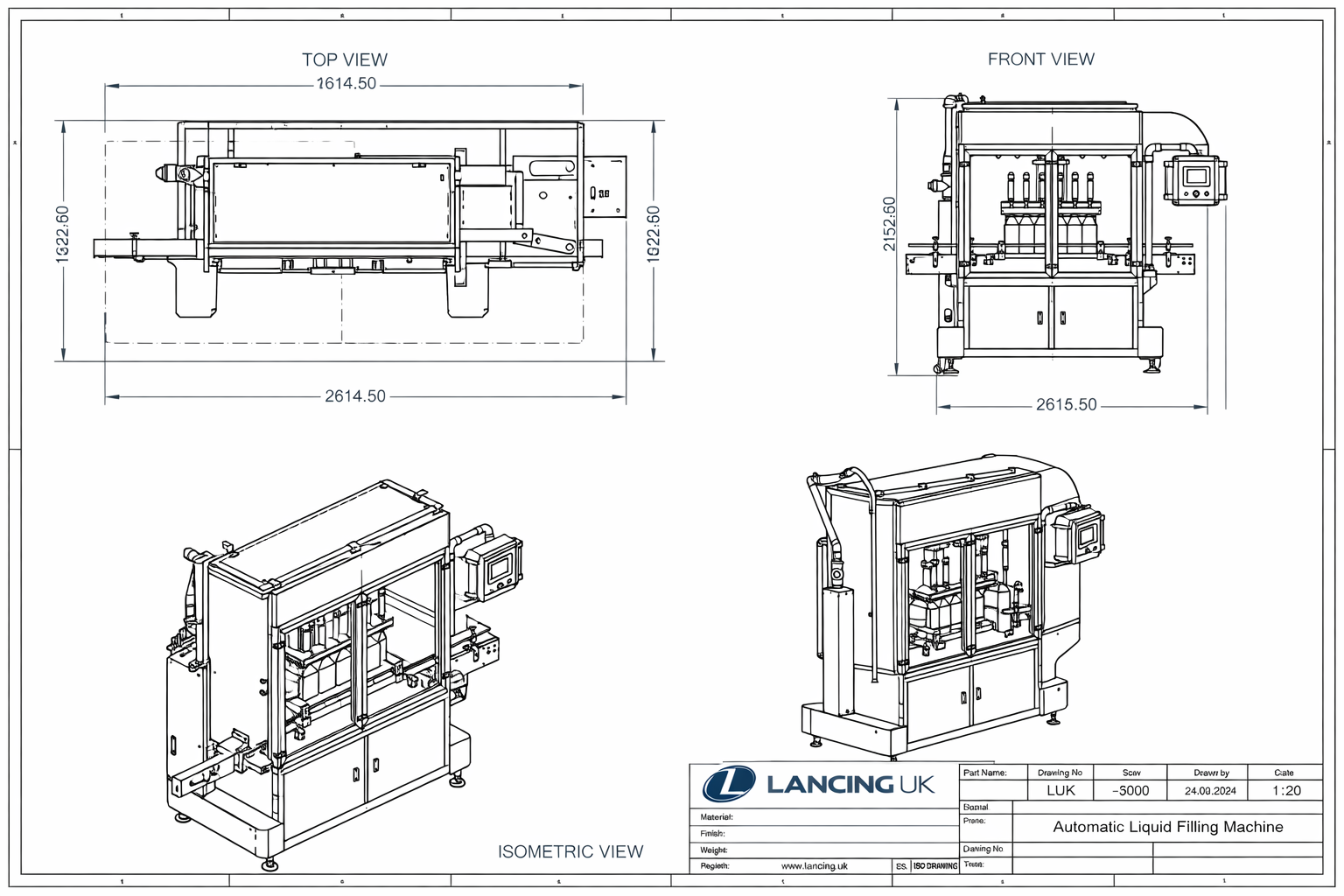

CAD / dimensions

CAD/dimensions are provided in a pop‑out viewer.

View CAD drawing

Site requirements

  • Machine size: 2615×1621×2153mm
For the most accurate proposal, include the product, container or pack dimensions, closure or label format, required units per hour and available utilities.

Quick answers

Practical information to help compare this machine with alternative packaging solutions.

What is LU‑CL6T High-Volume Liquid Filling Machine used for?

The Lancing UK LU-CL6T Automatic Liquid Filling Machine is built for high-volume, precision filling of liquids ranging from 500ml to 5000ml. Featuring six servo-driven magnetic pumps and a 320L storage tank with automatic level detection, it ensures consistent flow and accurate dosing. This page lists output at Max 42 bottles/min (500ml); format guidance including Filling range: 500-5000ml; Applicable bottle: Height ≤ 330mm, Diameter ≤ 110mm; machine size of 2615×1621×2153mm.

What output can LU‑CL6T High-Volume Liquid Filling Machine achieve?

This page lists output at Max 42 bottles/min (500ml). Actual throughput depends on the product, container or pack format, changeover requirements and the wider line setup.

What formats does LU‑CL6T High-Volume Liquid Filling Machine suit?

This page lists format guidance as Filling range: 500-5000ml; Applicable bottle: Height ≤ 330mm, Diameter ≤ 110mm. Final suitability is confirmed against your actual product and pack dimensions.

What utilities or site requirements should I plan for?

Machine size is listed as 2615×1621×2153mm. Power, air and installation requirements are confirmed at quotation stage.

Can Lancing UK help match this machine to my application?

Yes. Lancing UK can review the product, pack format, required output, utilities and line-integration needs to confirm the right configuration before quotation.
