Automatic Wine Bottles ROTARY Corking Machine

Get a Quote Arrange a Demonstration Call Now

Machine overview

Key information to help you specify the right configuration.

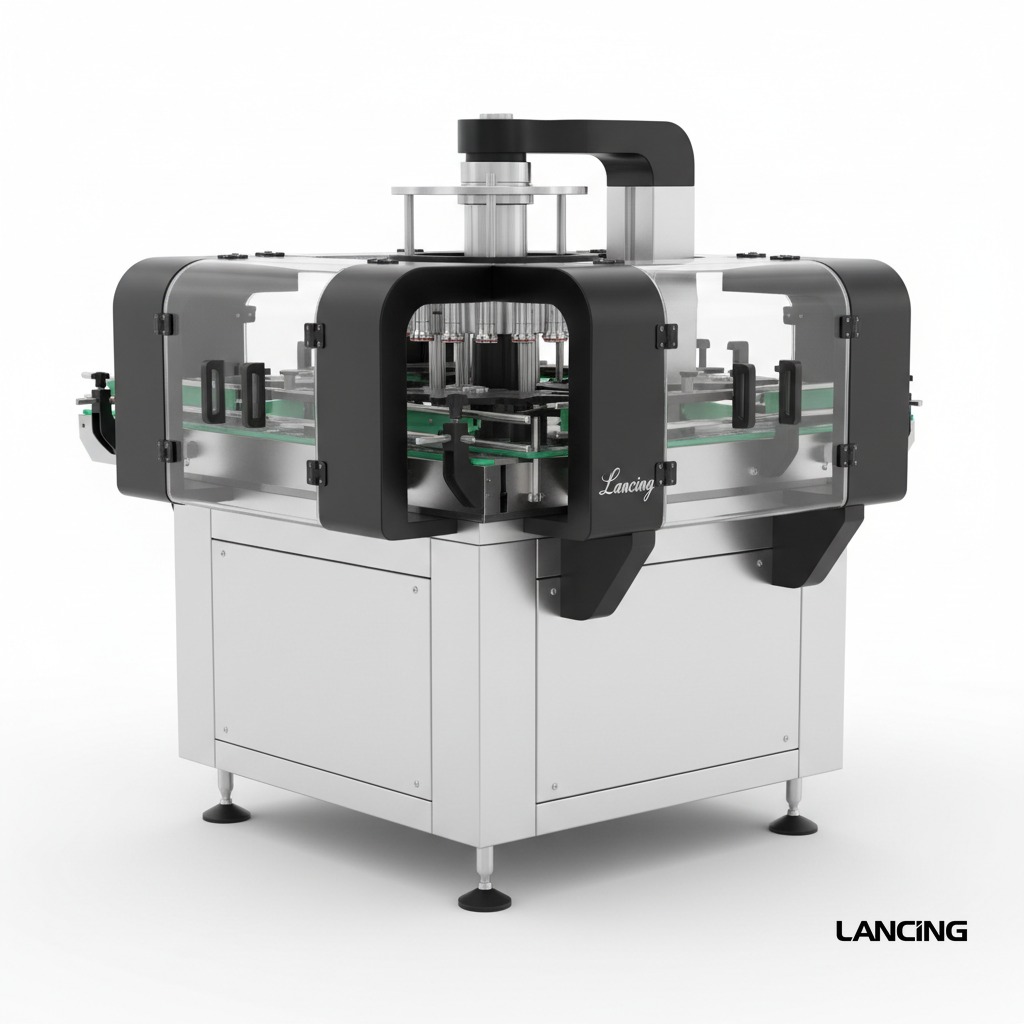

Automatic Wine Bottles ROTARY Corking Machine preview
DESCRIPRION This high-performance automatic corking machine is designed to efficiently and accurately press corks onto glass bottles. With a production capacity of 6000 bottles per hour (BPH), it features a rotary turret with 8 capping heads for smooth and reliable operation.
Throughput
Configurable (confirm during quote)
Throughput depends on product, format and operator workflow.
Format range
About 6000BPH
Configured to your bottle, closure and fill volume.
Utilities
380V/220V/110V 50-60Hz
Voltage, air and installation requirements confirmed for your site.

Specifications

Reference specification table. Final configuration may vary with options and scope.

ParameterValue
Machine model LU-XG440K
Working voltage 380V/220V/110V 50-60Hz
Machine power 1.5Kw+0.18Kw
Suitable bottle height About 70-260mm
Working capacity About 6000BPH
Machine size About 5750 × 3100 × 3500mm (L × W × H)
Package weight About 1072 × 378 × 98kg

CAD / dimensions

CAD/dimensions are provided in a pop‑out viewer.

No CAD/dimensions drawing uploaded yet.

Site requirements

  • Voltage: 380V/220V/110V 50-60Hz
  • Power: 1.5Kw+0.18Kw
  • Footprint / size: About 5750 × 3100 × 3500mm (L × W × H)
For the most accurate proposal, include: product viscosity/foaming, container size, closure type, and required units per hour.
