Machine overview
Key information to help you specify the right configuration.

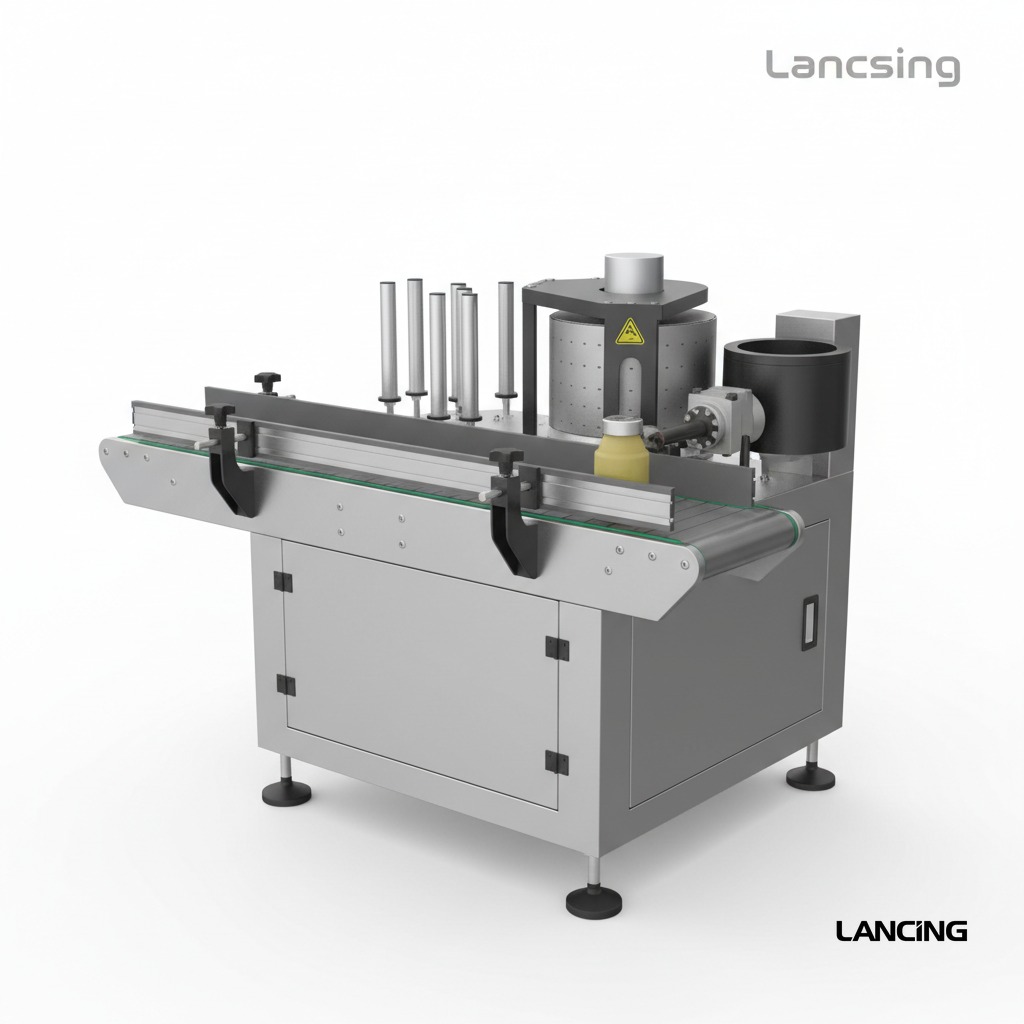

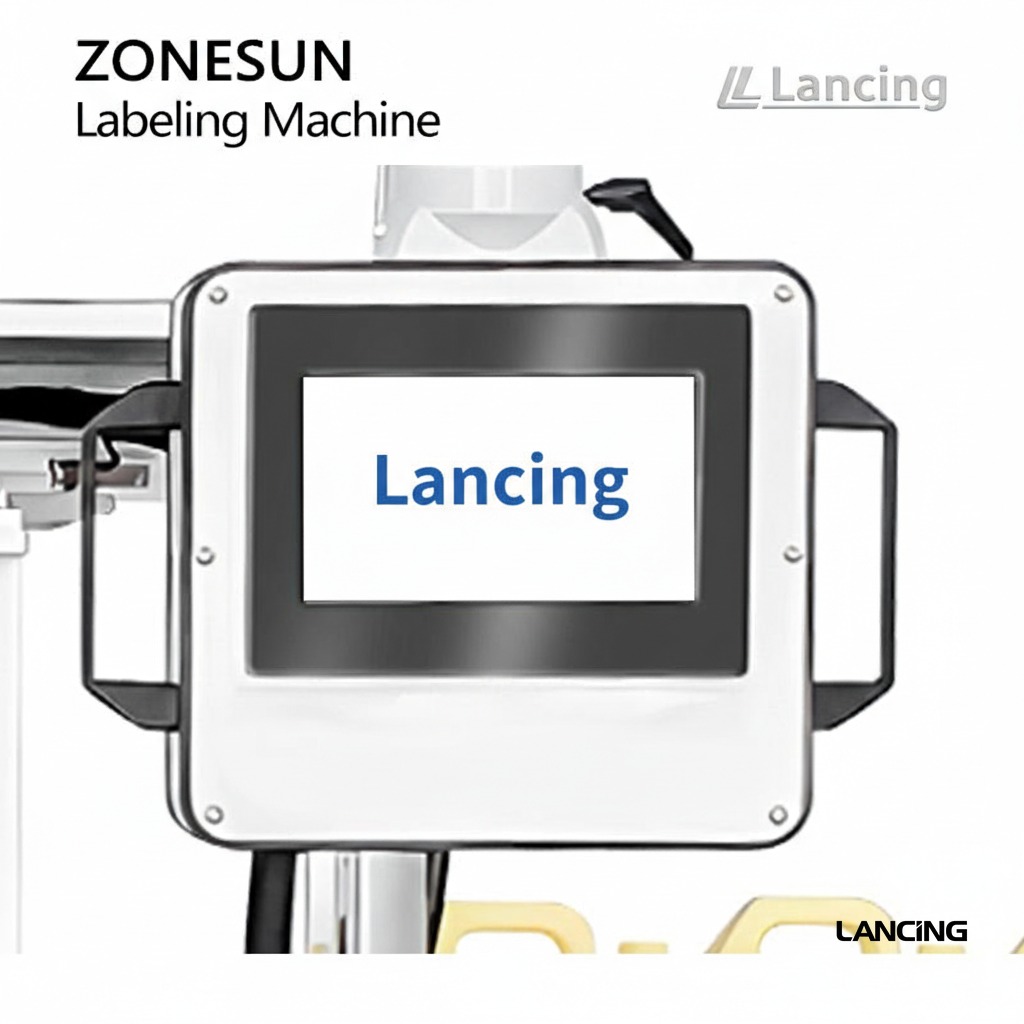

The LU-GTB12S is a high-speed automatic labeling machine designed for square and oblong bottles. Equipped with a PLC system and hot melt glue technology, it ensures precise label placement and consistent performance. Supporting various label types including OPP film and paper composites, this machine is ideal for large-scale packaging operations. With customizable settings and a user-friendly interface, Lancing UK helps you label smarter and faster. Lancing UK LU-GTB12S Automatic Hot Melt Glue Labeling Machine – Technical Specifications Parameter Specification Machine Model LU-GTB12S Power Supply Three-phase 380V, 50Hz, 8000W Maximum Labeling Speed Approx. 1200–1400 pcs/hour Labeling Accuracy ±1mm Max Label Width (Height) 180mm (customizable) Max Label Length 750mm Max Label Outer Diameter 600mm Min Label Inner Diameter 152mm Glue Type Hot melt adhesive (applied only at both ends of label) Gluing Temperature 120–160°C Label Types OPP film, paper-plastic composite film, paper label Applicable Product Type Square bottles Machine Dimensions (L × W × H) Approx. 4650 × 1650 × 1650 mm Machine Weight Approx. 1500 kg
Throughput
Configurable (confirm during quote)
Throughput depends on product, format and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
Configured to your bottle, closure and fill volume.
Utilities
Site utilities to be confirmed
Voltage, air and installation requirements confirmed for your site.
