Machine overview
Key information to help you specify the right configuration.

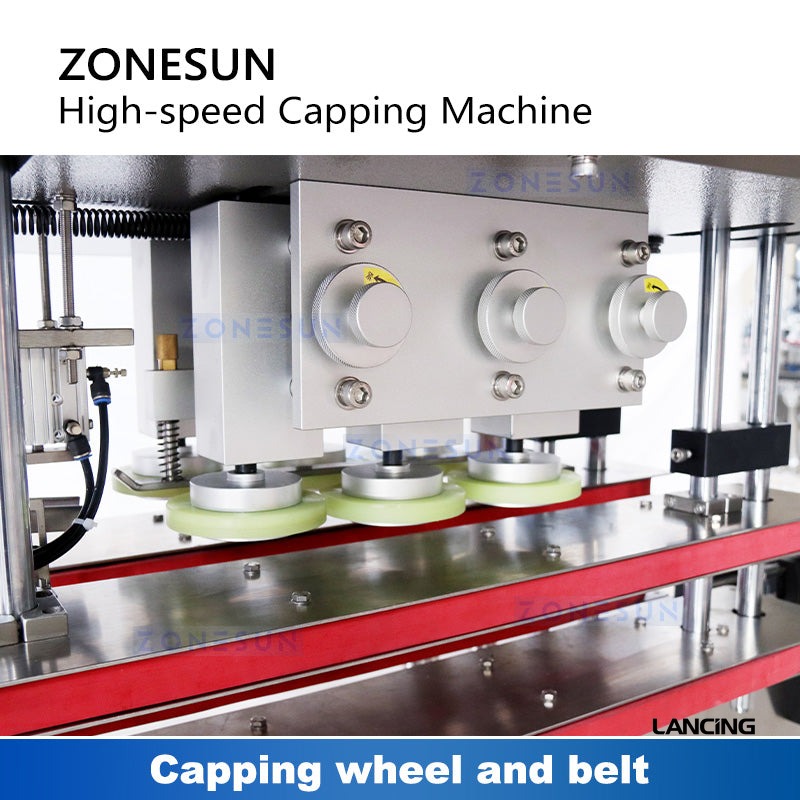

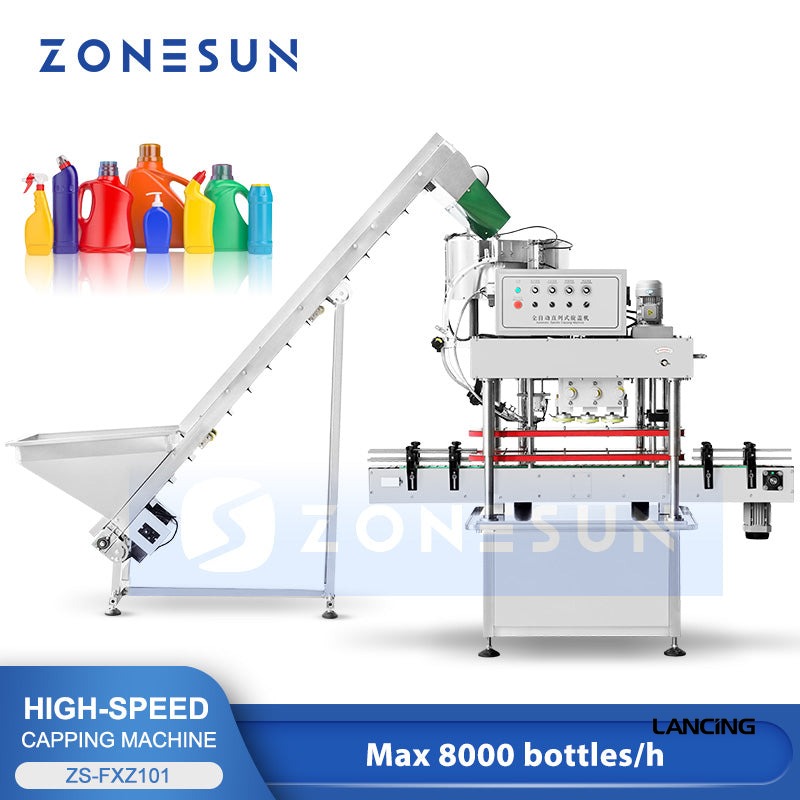

The Lancing UK LU-FXZ101 is a high-speed automatic capping machine engineered for efficient bottle sealing in industrial production lines. Equipped with six rotary rubber wheels, it delivers precise and secure cap tightening for various bottle types. The integrated cap feeder ensures continuous operation without manual intervention, boosting productivity and reducing labor. With a maximum speed of up to 8000 bottles per hour, this machine is ideal for high-volume packaging environments. It supports a wide range of bottle and cap diameters, making it versatile for food, beverage, cosmetic, and chemical industries. Lancing UK LU-FXZ101 Automatic Bottle Capping Machine Parameter Details Model LU-FXZ101 Power Supply AC 220V / 50Hz Rated Power 2.2 kW Working Speed Up to 8000 bottles/hour Applicable Bottle Diameter φ40 mm – φ100 mm Applicable Cap Diameter φ20 mm – φ50 mm Machine Weight Approx. 650 kg Machine Dimensions 2000 × 850 × 2050 mm (L × W × H)
Throughput
Configurable (confirm during quote)
Throughput depends on product, format and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
Configured to your bottle, closure and fill volume.
Utilities
Site utilities to be confirmed
Voltage, air and installation requirements confirmed for your site.
