Granule Weighing Filling and Sealing Machine

Machine overview

Key information to help you specify the right configuration.

Granule Weighing Filling and Sealing Machine preview

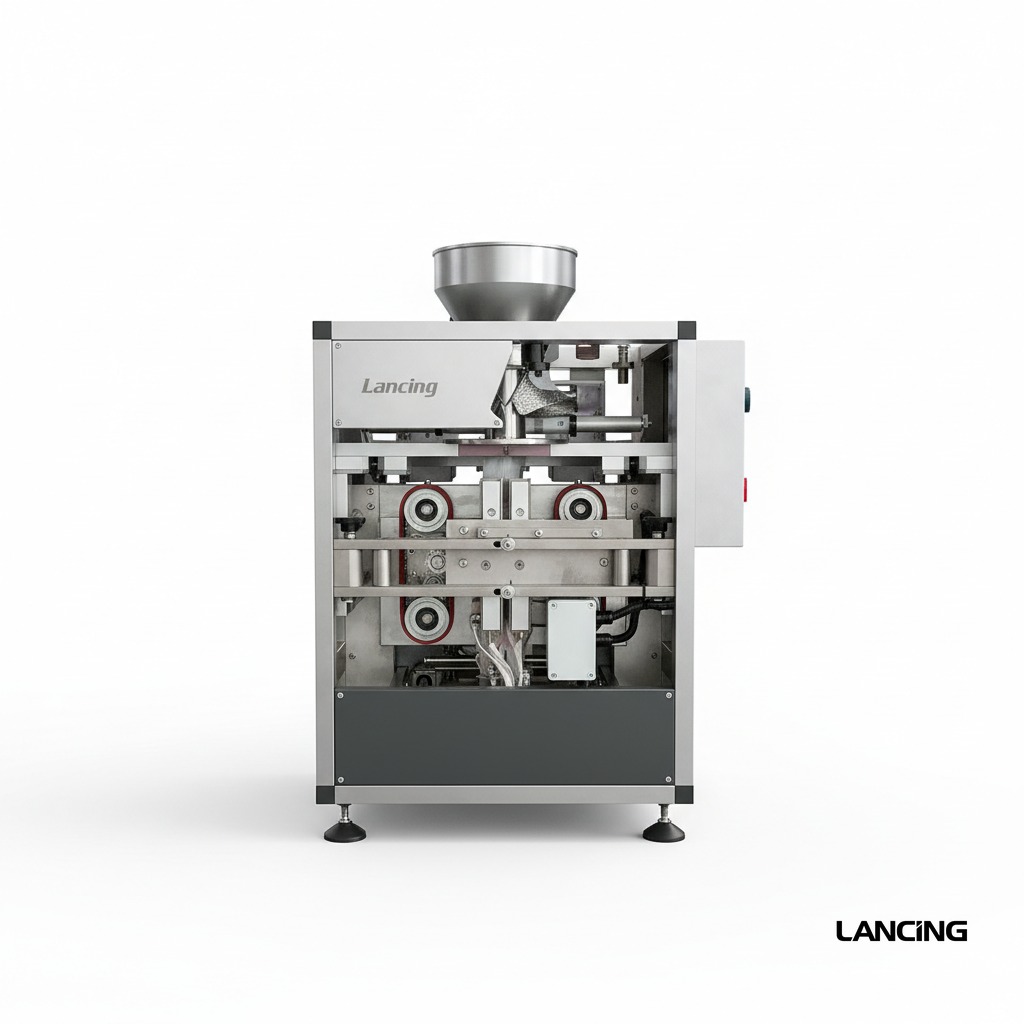

The Lancing UK LU-GFKL420 is a high-performance automatic packaging machine designed for granular products such as chips, rice, nuts, and coffee beans. Equipped with 10 precision electronic scales and a 1.3L hopper, it ensures accurate weighing and efficient filling. Supporting multiple sealing formats—back, three-side, or four-side—this machine adapts to diverse packaging needs. With a customizable filling range up to 2500g and a speed of up to 60 bags per minute, it’s ideal for food, snack, and agricultural product industries seeking speed, accuracy, and flexibility. LU-GFKL420 Automatic Packaging Machine Specifications Specification Details Machine Model LU-GFKL420 Voltage 220V, 50Hz Power 3000W Suitable Film OPP/CPP, OPP/PE, NILO/PE, PE Filling Range 10–2500g (customizable ranges available) Packaging Speed 5–60 bags/min Film Width Max 420 mm Electronic Scale Quantity 10 Hopper Size 1.3 L Bag Size Width: 100–200 mm × Length: 230 mm Sealing Method Back / Three-side / Four-side (customizable) Filling Accuracy ≤0.3–1 g
Throughput
Configurable (confirm during quote)
Throughput depends on product, format and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
Configured to your bottle, closure and fill volume.
Utilities
Site utilities to be confirmed
Voltage, air and installation requirements confirmed for your site.

Specifications

Reference specification table. Final configuration may vary with options and scope.

No specifications listed yet.

CAD / dimensions

CAD/dimensions are provided in a pop‑out viewer.

No CAD/dimensions drawing uploaded yet.

Site requirements

  • Add “Voltage / Power / Air / Size” specs to show requirements here.
For the most accurate proposal, include: product viscosity/foaming, container size, closure type, and required units per hour.

Talk to a specialist

We’ll confirm suitability, options, integration, and realistic throughput for your product.

Call: 01494 623015 Arrange a demonstration

Enquire about this machine

Send a message and we’ll respond with configuration options, pricing guidance and lead times.
