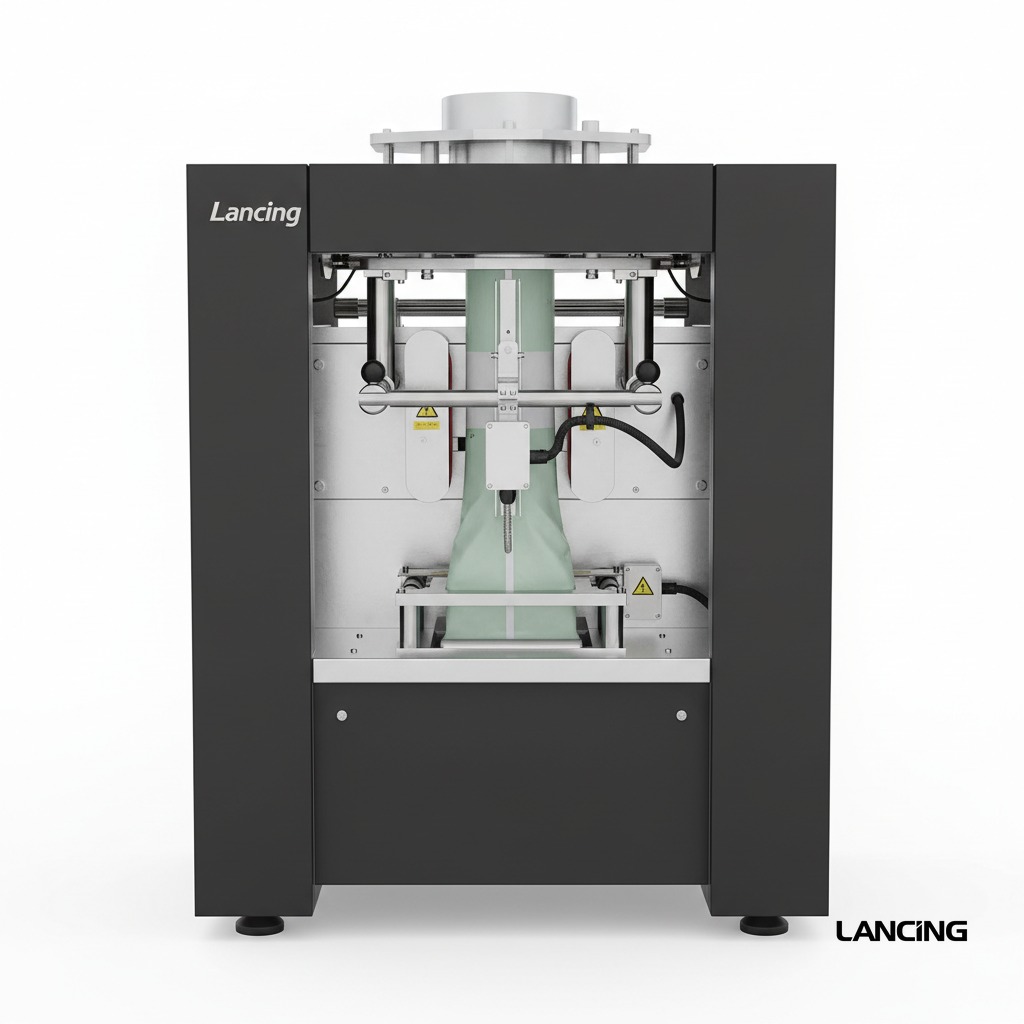

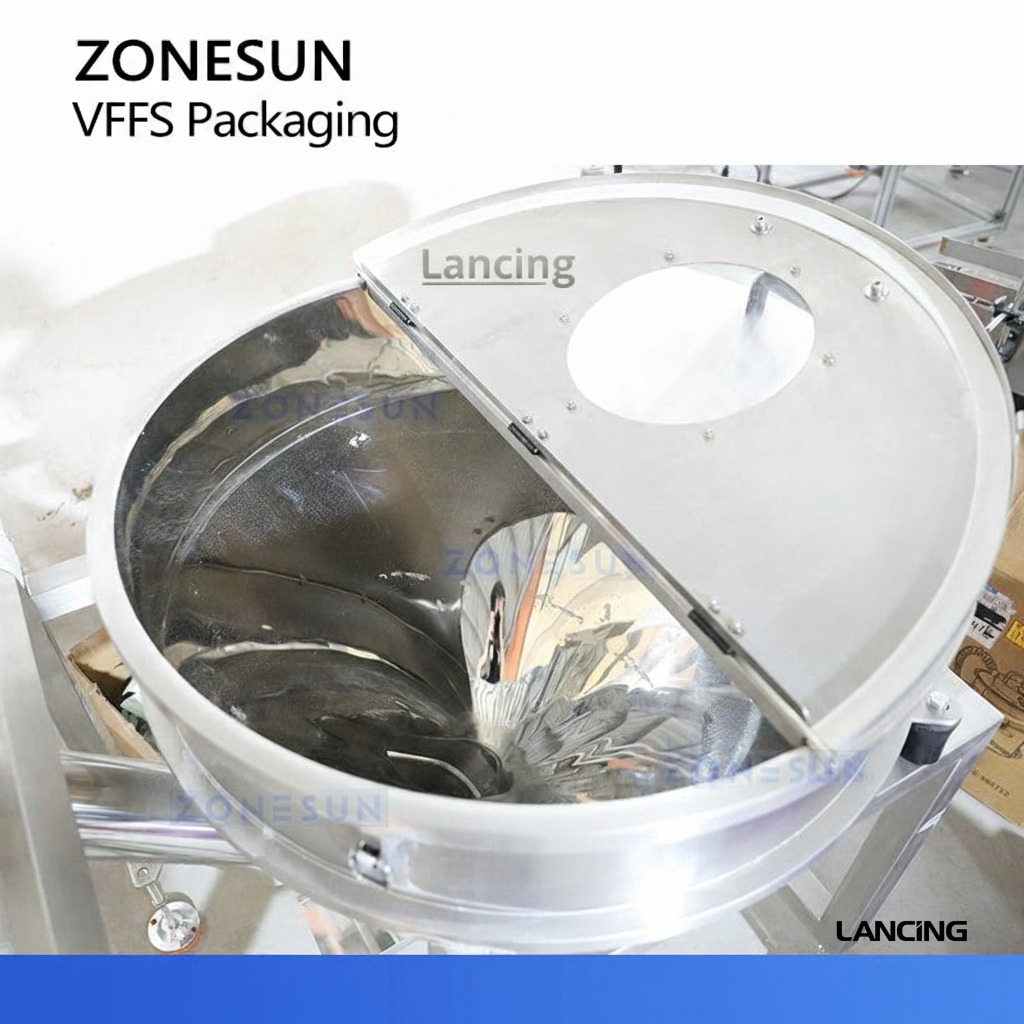

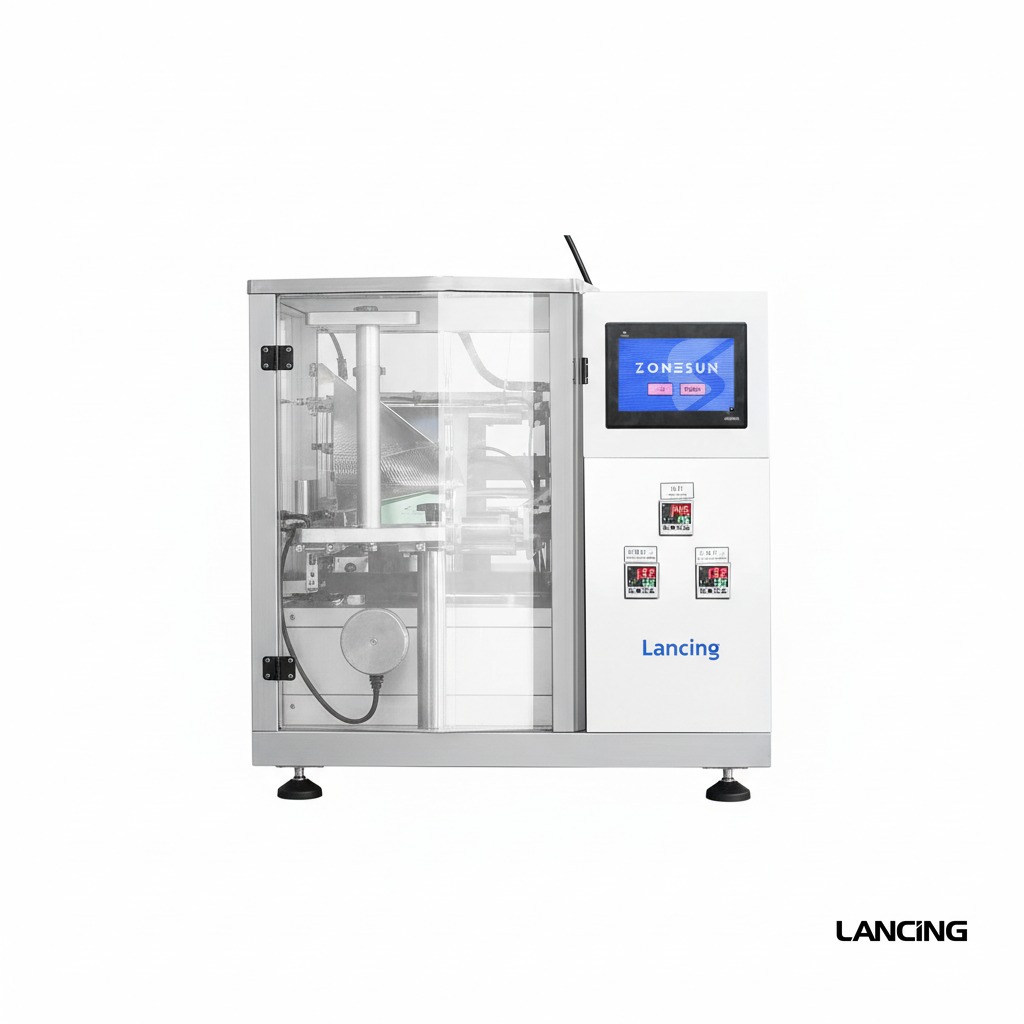

Machine gallery
Representative machine images.
Specifications
Reference specification table. Final configuration is confirmed with the agreed scope, options and pack format.
| Parameter | Value |
|---|
| Parameter | Value |
|---|
| Machine Model | LU-FS06 |
|---|
| Working Voltage | 110/220V 50-60HZ |
|---|
| Packaging Speed | 5-80 bags/minute |
|---|
| Roll Film Thickness | 0.05-0.2 mm |
|---|
| Roll Film Inner Cylinder Diameter | ¢75mm |
|---|
| Maximum Roll Film Diameter | ¢360mm |
|---|
| Film Materials | POPP/CPP, POPP/VMCPP, CPP/PE, etc. |
|---|
| Measuring Method | Electronic Scale/Screw/Measuring Cup/Four-Head Scale/Manual Feeding (optional) |
|---|
| Air pressure | 0.6-0.8 Mpa |
|---|
| Max Film Width | 520 mm |
|---|
| Bag Making Size | W: 60-250 mm L: 80-350 mm |
|---|
| Filling Range | 150-2000 ml |
|---|
| Air Consumption | 400 L/min |
|---|
| Power Supply | 3.5 KW |
|---|
| Dimensions (L×W×H) | 1440×1140×1740 mm |
|---|
| Machine Weight | 500 kg |
|---|
CAD / dimensions
Site requirements
- Working Voltage: 110/220V 50-60HZ
- Air pressure: 0.6-0.8 Mpa
- Power Supply: 3.5 KW
- Machine size: W: 60-250 mm L: 80-350 mm
For the most accurate proposal, include the product, container or pack dimensions, closure or label format, required units per hour and available utilities.
Detailed layout and dimension drawings can be supplied during quotation and project planning where required.
Quick answers
Practical information to help compare this machine with alternative packaging solutions.
What is LU‑FS06 Automatic VFFS Auger Powder Filling Machine used for?
The Lancing UK LU-FS06 is a fully automatic auger filling and vertical form-fill-seal (VFFS) packaging machine specially designed for powder products. It is particularly suitable for efficiently packaging large-volume powders such as laundry detergent, cleaning powder, and bleaching powder.Equipped with a high-performance auger feeding system and a dust collection bucket, the machine ensures high-precision filling and clean operation, effectively controlling dust dispersion. This page lists output at 5-80 bags/minute; format guidance including Filling Range: 150-2000 ml; site requirements including Working Voltage: 110/220V 50-60HZ; Air pressure: 0.6-0.8 Mpa.
What output can LU‑FS06 Automatic VFFS Auger Powder Filling Machine achieve?
This page lists output at 5-80 bags/minute. Actual throughput depends on the product, container or pack format, changeover requirements and the wider line setup.
What formats does LU‑FS06 Automatic VFFS Auger Powder Filling Machine suit?
This page lists format guidance as Filling Range: 150-2000 ml. Final suitability is confirmed against your actual product and pack dimensions.
What utilities or site requirements should I plan for?
Typical requirements listed on this page include Working Voltage: 110/220V 50-60HZ; Air pressure: 0.6-0.8 Mpa; machine size: W: 60-250 mm L: 80-350 mm.
Can Lancing UK help match this machine to my application?
Yes. Lancing UK can review the product, pack format, required output, utilities and line-integration needs to confirm the right configuration before quotation.
